Active Ion Gauge AIGX-S-NW25 EDWARDS SAS

Active Ion Gauge AIGX-S-NW25

Other pressure sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

A compact Active ion gauge with dual yttria coated iridium filaments, a wide measuring range from 6.6 x 10-2 to 6.6 x 10-10 mbar (5 x 10-2 to 5 x 10-10 Torr) and a 1 Volt/decade linear output.

The new AIGX gauge from Edwards incorporates all the benefits of the industry standard Active gauging concept, with integral electronics and replaceable tube.

The gauge has a degas facility and includes features to protect and extend the life of the filaments.
The AIGX benefits from extremely low emissions of charged particles, which makes it an excellent choice for processes where background noise is undesirable.

Pressure range : 6.6 x 10-2 to 6.6 x 10-10 mbar (5 x 10-2 to 5 x 10-10 Torr) Power supply : +14.5 to +30.0 V d.c. Output signal : Linear, 1 Volt / decade Maximum voltage : 30 V d.c Maximum current : 100 mA max Operating environment : Dry non conductive atmosphere Operating temperature : +0 to +40°C Storage temperature : -30 to +70°C
Download the complete technical features

Drop your rating on Active Ion Gauge AIGX-S-NW25

Your answer to the rating from -

OTHER PRODUCTS OTHER PRESSURE SENSORS FROM EDWARDS SAS

Wide Range Gauge WRG

Wide Range Gauge WRG

 Ask for a quote

INTERNET USERS ALSO CONSULTED ON THE CATEGORY OTHER PRESSURE SENSORS

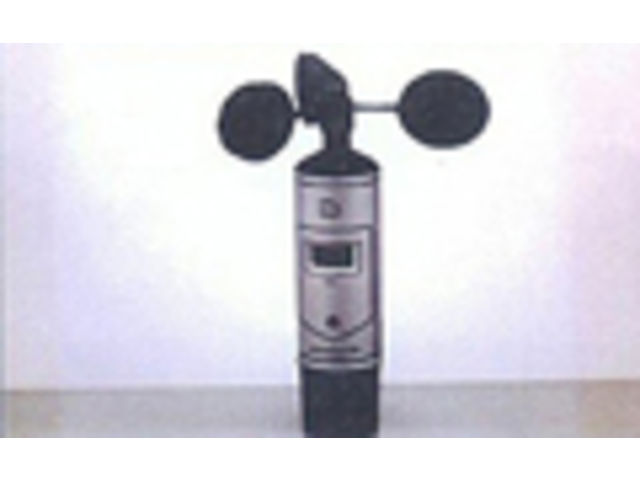

Manual anemometer
