Active Strain Gauge ASG2 1/8 Inch NPT, 1000 mbar EDWARDS SAS

Active Strain Gauge ASG2 1/8 Inch NPT, 1000 mbar

Other measuring systems

Vote

Ask for a quote Receive Documentation Contact the supplier

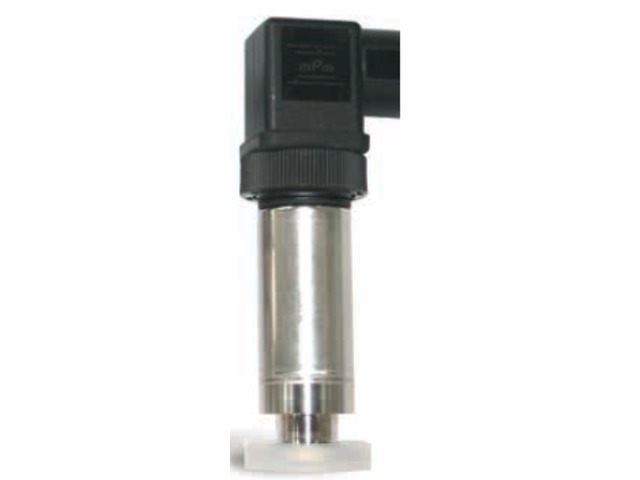

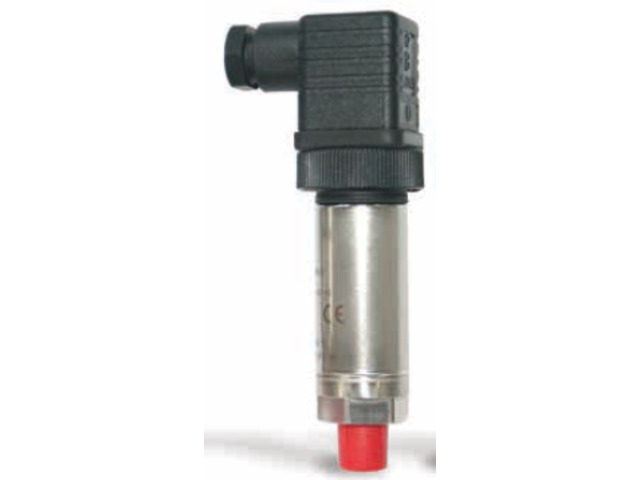

The Edwards Active Strain Gauge (ASG2) is a rugged, corrosion resistant diaphragm gauge which provides accurate, gas independent measurement from 2000 mbar to 1 mbar or 1000 mbar to 1 mbar.

It can be used as a stand-alone transducer allowing OEMs and system builders to develop low cost, flexible solutions to their vacuum instrumentation needs.

Alternatively, it can be connected to the TIC Instrument Controller where it can be combined with many other sensor types to provide a complete vacuum instrument solution.

Note: ASG adaptor cable supplied separately. This cable must be used with TIC, AGC, ADC & ADD.

Full scale pressure range: ASG2-1000, 1000 to 1 mbar ASG2-2000, 2000 to 1 mbar Accuracy : ±0.2% full scale Stability : ±0.1% full scale Temperature coefficient : ±0.03% full scale per oC Power supply : 12 to 32 V d.c. Maximum power : 0.1 W Output signal : 0 to 10 V d.c. linear Output impedance : 51 (Ohms) Minimum load : >10 (Ohms) Adjustments : Set full scale and set zero
Download the complete technical features
