MARECHAL ELECTRIC

ATEX socket boxes - MXBS MARECHAL ELECTRIC

ATEX socket boxes - MXBS

Electrical boxes

Vote

“ Safe for both harsh and hazardous areas ATEX zones: Gas and Dust ; zones 1&2, 21&22 A comprehensive range for most applications 10 sizes of boxes for all types of wet or corrosive environments Possibility to mount both socket-outlets and multicontact connectors on the same box Many accessories available on request ”
Ask for a quote Receive Documentation Contact the supplier

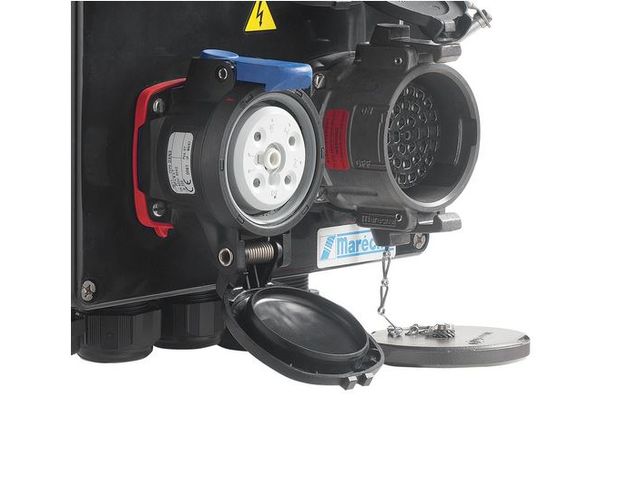

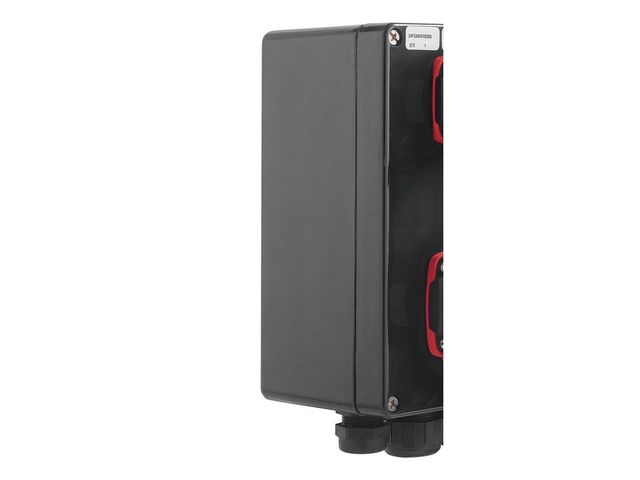

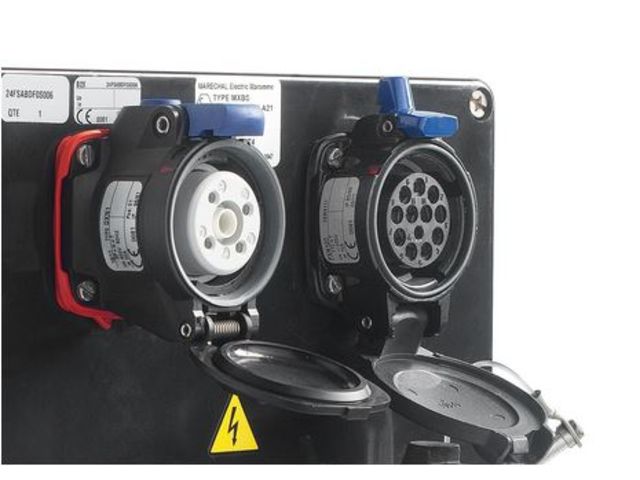

Equipped with 20 to 63 A decontactors and/or 10 A multicontact connectors, these reinforced polyester resin fiberglass and graphite loaded socket-outlet combination boxes are designed for making electrical connections in hazardous areas, offering from 12 to 37 contacts. They provide increased safety and intrinsic safety, allowing them to be used in zones 1 & 2 (gas), 21 & 22 (dust). This comprehensive range is also ideal for wet environments – such as food and beverage or chemical industries – thanks to their corrosion resistance. It is possible to mount both socket-outlets and multicontact connectors on the same box, with some models able to accommodate up to 24 socket-outlets or connectors.
- IP66 Water- and dust-tight
- Up to 24 socket-outlets
- Assembly of multi-contact connectors and socket-outlets on the same enclosure.
- Ex II2 G D Ex e ia or ib IIC

Download the complete technical features
