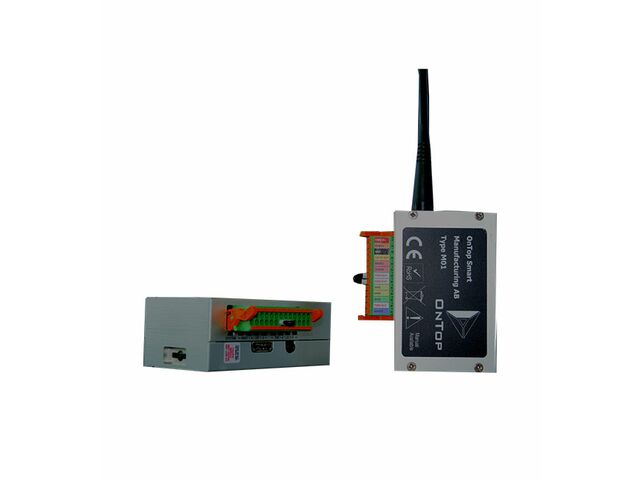

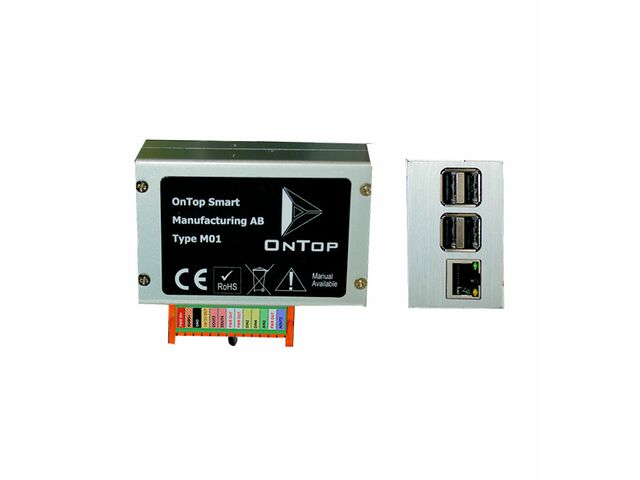

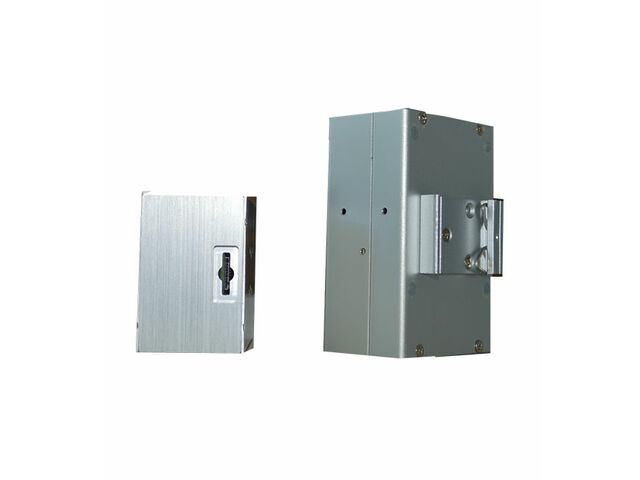

Connect any UR cobot easily with the automatic OnTop MES IIoT Hub. View real-time data online during a free trial period. Subscribe to customizable app services for monitoring, alerts, analytics and productivity.
-
If connected to an LAN, connect the OnTop™ IIoT Hub to the same LAN as the Cobot controlbox.
-
If the Cobot is not on an LAN, connect the OnTop™ IIoT Hub directly to the Cobot controlbox with a CAT5/6 LAN Cable.
-
Connect the OnTop™ IIoT Hub to the Internet with CAT5/6 LAN cable. Connect the OnTop™ IIoT Hub to a 24V power supply.
-
Power up the UR Cobot.
-
The OnTop™ IIoT Hub will connect automatically to OnTop™ IIoT app services.
-
Your cobot telemetry data will be available under the Report tab for a limited free trial period.
Use the same OnTop™ IIoT Hub to connect other types of production equipment.
