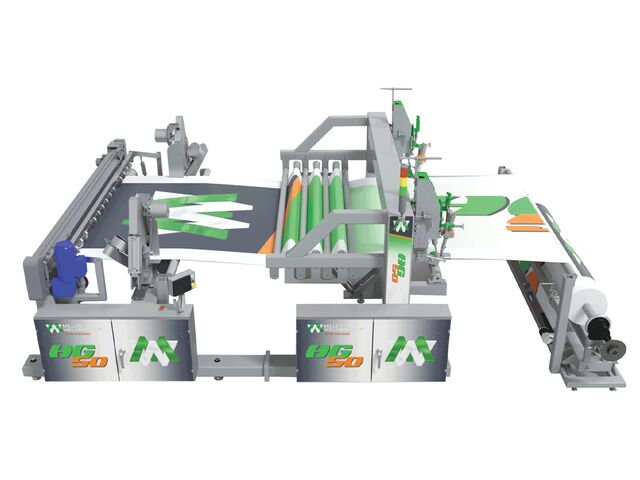

Automatic Sign Finishing Machine - HG-50

Heating element welding machine

Vote

Ask for a quote

Presentation

HOT AIR WELDING HG50
Weld, pass, cut

The HG 50 is a versatile, high-speed streamer finishing machine, designed for welding, cutting and eyeleting operations on a single station. Designed for one-person operation, it eliminates multiple processes and minimizes material handling. This integration results in a significant increase in usable space and streamlined operations, maximizing business efficiency and productivity.

Features and benefits

Precision linear feeders: for smooth, controlled material feed.
Advanced tension control: Includes a braked unwind mechanism to ensure constant tension throughout the operation.
Intelligent recipe storage and PLC control: Enhance the user experience by storing specific parameters and ensuring continuous machine operation.
Intelligent dual-direction cutting: Optimized for exact-length cutting functions, supported by sophisticated photo-cellular sensing technology.
Quick-set, solid bottom sealing roller: Ensures rapid size changes with minimal downtime.
Strategically positioned pneumatic accumulator: Facilitates uninterrupted welding. Positioned at the top for continuous loading.
Precise grommet placement: Integrated photo eyes ensure precise grommet placement.
Versatile eyelet options: Compatible with durable plastic and sturdy metal grommets.
Integrated output extractor: Ensures uniform tension and synchronizes perfectly with the cutting system for optimum performance.

Technical specifications

Power supply requirements

240 Volts three-phase - 60 Amp
400 Volts three-phase - 40 Amp
Air requirements
5 cfm at 100psi

Maximum temperature

730˚C (1 346˚F)

Roller width

2.5 meters or 3.2 meters

Dimensions

Length: 16.5 feet (4.94 meters)
Width: 3.51 meters (11.5 feet)
Height: 1.98 meters (6.5 feet)

Weight

4,250 lbs (1,927.77 kg)
Unwinding: 750 lbs (340.19 kg)
Welding and accumulator: 907.18 kg (2,000 lbs)
Eyelet and cutter: 680.39 kg (1,500 lb)

Seam width

25 mm or 50 mm (1" or 2")

Welding cycle

Up to 6.5m/min (21ft/min)
