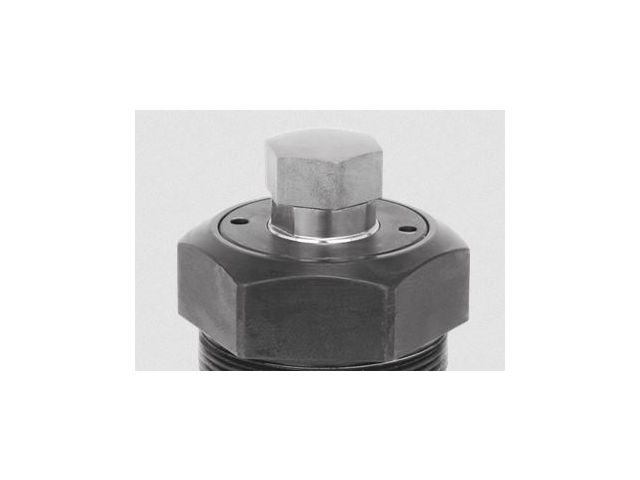

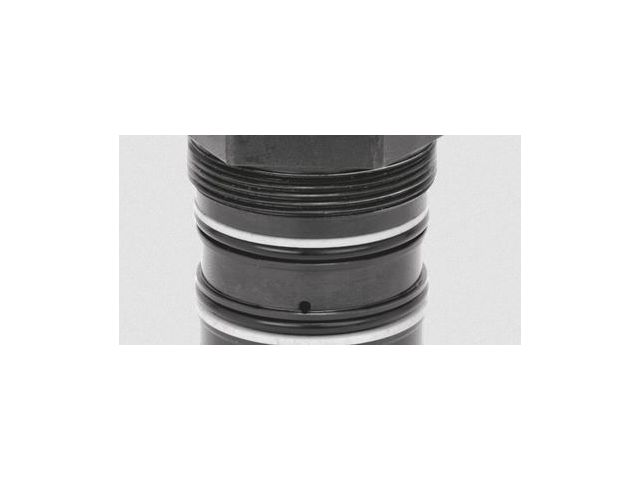

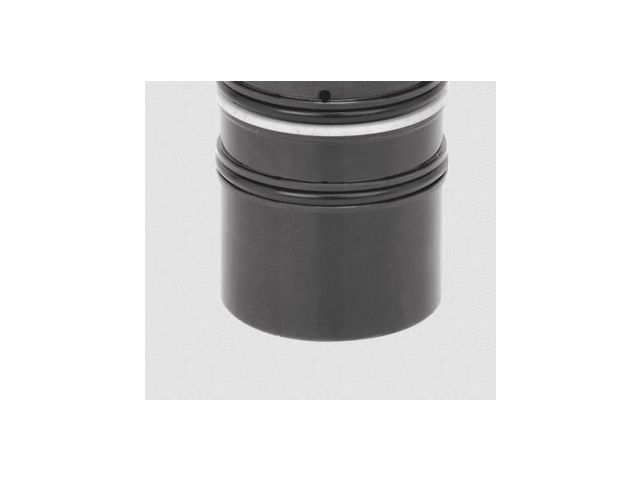

Hydraulic work supports are used to provide a self-adjusting rest for the workpiece during the machining operations. They compensate the workpiece surface irregularities, also vibration and deflection under machining loads. The threaded-body design allows for space-saving and direct installation into the fixture body. Oil supply is made through drilled channels.
● Space-saving threaded-body version
● 3 sizes
● 3 types of function
● Contact force by spring or pneumatically adjustable (195X-021)
● Load force up to 100 kN
● Venting for spring area universally connectable
● Metallic wiper edge and FKM wiper
● Connection of positive air pressure protection is possible
● Support plunger and interior parts protected against corrosion
