Bottle HPBI

General description General description :

• The Nova Swiss® bottle HPB1 is designed for liquid and gas very high pressure applications up to 60.000 psi (4000 bar). This bottle is declined in 7 standard models (3 volumes and 3 pressure ranges), with a multiple connection choice. It also can be customized in order to answer different technical needs.

Applications :

• PVT laboratories (Petro-chemicals, Bio-materials, Biology, etc.)
• High pressure gas or liquid tank

Technical data :

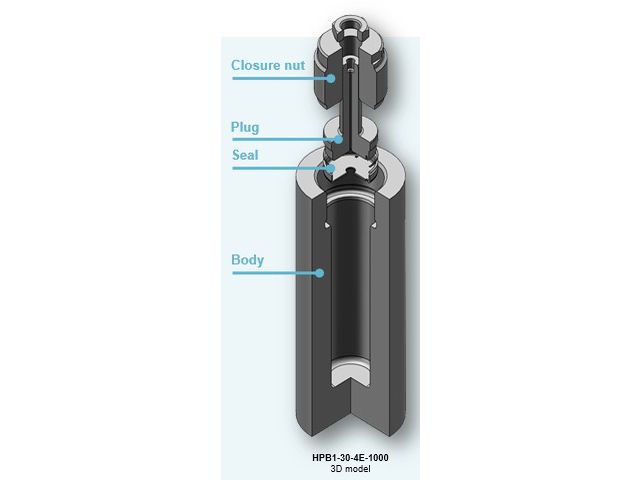

• One opening of plug type on top (threaded closure)
• One connection on the plug
• Material : stainless steel  (high mechanical characteristics)
• Sealing : elastomer O or U-ring (depending on application)
• PED 97/23/EC agreement and marking (up to category IV)

Tests and provided documentation :

• Test and gas leakage test (N2)
• Technical instructions and compliancy certificates (English or French)

Standard range :

• Fluid : liquids or gases (except high corrosive fluid)
• Pressure ranges : 15.000, 30.000 and 60.000 psi
• Temperature : from -20ºC to +100ºC
• Volumes : 0.5 L, 1 L and 1.5 L
• HP standard Nova Swiss® connections (see table below)
