CAN Displays - RM Display 1001

Small, but highly effective display.

• Monochrome LC display with CAN connection
• Compact, round enclosure
• OEM Variant

Small and versatile

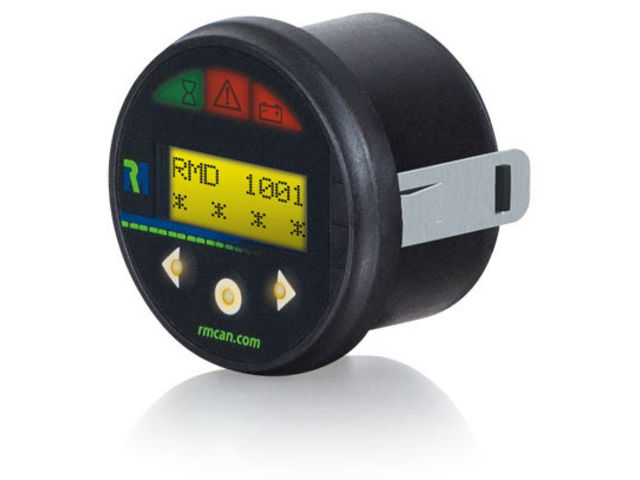

RM Display 1001 is a monochrome, alphanumeric LC display which features a CAN connection. Its small, circular standard enclosure allows for flexible use in diverse applications. For example, already existing circular analog display units in cockpits can be replaced by RM Display 1001. The LED backlight provides for easy use, even in darkness. Three pushbuttons facilitate the entering or modifying of data. Three indicator lamps indicate the status of the device connected to the display, and a buzzer is available for alert messages.

Ideal for limited space

The standard enclosure of RM Display 1001 features an outer diameter of only 60 mm and is thus ideally suited for deployment in limited space. The display is a built-in variant which can be attached with clamps or springs in a hole with a diameter of only 53 mm. A wide input power supply range of 9 V to 60 V allows for industrial and mobile applications with operating voltages of 12 V, 24 V or 48 V. An operating temperature range of –20 °C to +70 °C permits its deployment in largely diverse environments. The circular 5-pin connector serves to connect supply voltage and the CAN bus. As an option, the enclosure can be equipped with a customized front membrane.

Flexible firmware

RM Display 1001 functions as a CAN slave. The firmware generates cyclic and asynchronous CAN messages while the display simultaneously responds to received CAN messages. Additional flexibility is provided by your ability to modify parameter settings during operation, as well as the option to parameterize other CAN nodes with the assistance of the display unit.

Tried and tested software

Display and key functions of the RM Display 1001 can be easily programmed with the RMsys Configurator software tool.

For more details : http://www.isit.fr/images/document/bus-de-terrain/rm-display-1001.pdf
