EDWARDS SAS

Chemical dry pumps : CXS160 ATEX CAT 2&3 T3 Light duty EDWARDS SAS

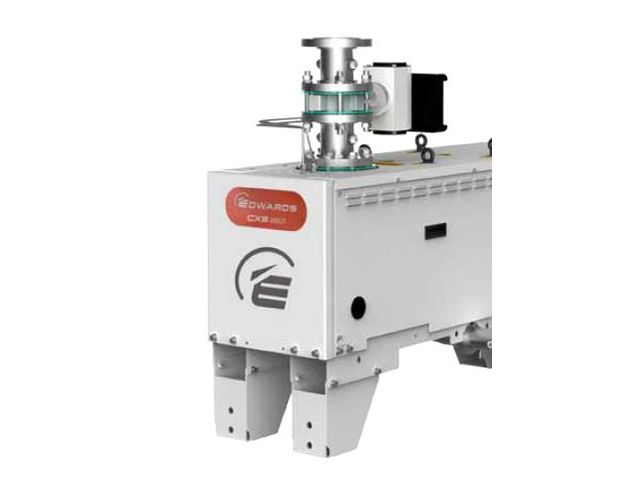

Chemical dry pumps : CXS160 ATEX CAT 2&3 T3 Light duty

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

Overview Edwards pioneered the industrial dry vacuum pump in 1986 and now with more than 150,000 systems sold worldwide this Edwards expertise has been used to develop a dry pump capable of withstanding the harshest of process applications.

The CXS incorporates innovative screw design features with simplicity and reliability in mind, a ‘Plug and Pump’ philosophy has been adopted. As a result, the CXS has industry leading reliability, safety and low cost of ownership.
  • Continuous vacuum from atmosphere to 10-3 mbar
  • Integral temperature control
  • Pumps corrosive vapours without deterioration
  • Excellent liquid and solids handling
  • Deeper vacuum than traditional technologies - not limited by seal fluid or cooling water temperature

Maximum pumping speed : 160 m3h-1/ 95 ft3min-1 Capacity at 10 mbar (7.5 Torr) : 132 m3h-1 / 78 ft3min-1 Ultimate vacuum : <0.02 mbar / <0.015 Torr Maximum back pressure - standard : 1,200 mbar / 2.7 psig Power consumption at 10 mbar (7.5 Torr) : 3.6 kW / 4.8 hp Standard motor (200 - 230V ±10%, 3 ph, 50/60 Hz) : 7.5 kW
Download the complete technical features

Drying Degassing Deodorisation Distillation Reactor service
