CopperWAY-Bis-4TTX

Network equipment

Vote

Ask for a quote

Presentation

The CopperWay-Bis-4TTX is an access router delivering Ethernet and digital interfaces over a mixed network of pilot cables and fiber optics.

The CopperWay-Bis-4TTX is a secure router that encrypts data using IPSec-type protocols. It can also operate as a Layer 2 switch, with full QoS, VLAN and traffic control capabilities.

The CopperWay-Bis-4TTX provides a very high level of security for critical networks, thanks to several security levels. Application flows are encrypted using AES-128/256 protocols. Network access is 802.1X authenticated, and system administration is protected by Radius authentication. To reinforce these security mechanisms, tamper-proof electronics are integrated into the hardware to secure sensitive data (encryption certificates) as well as the system's internal software.

The CopperWay-Bis--4TTX provides all necessary communication interfaces. It provides 4 Ethernet interfaces, 2 Gigabit Ethernet SFPs, a digital input and relay output with dry contacts, and an RS232/485 terminal port.

The CopperWay-Bis--4TTX features all IP protocols for ideal integration into the latest generations of information system infrastructure, including IPSec with IKEv2 and Hub-and-Spoke, SCEP.

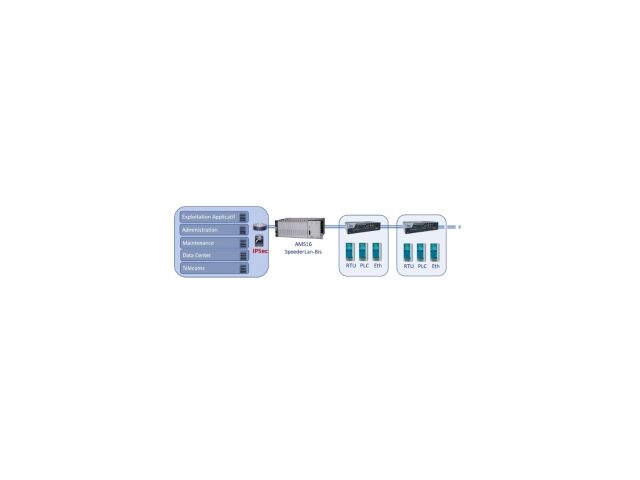

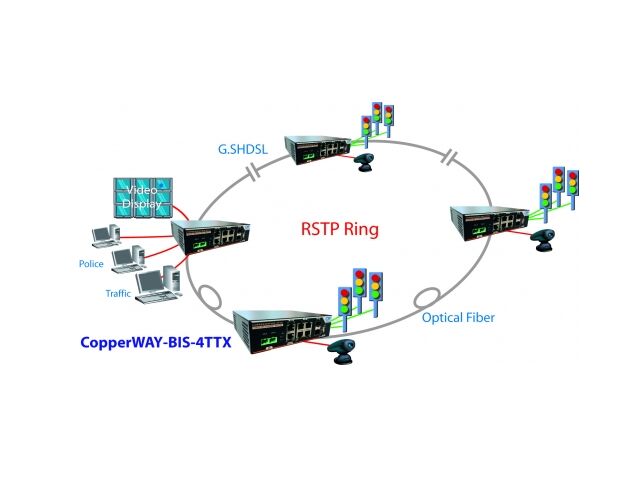

The CopperWay-Bis-4TTX connects equipment with Ethernet interfaces at every point of a copper pair and/or fiber optic infrastructure. It provides all the Ethernet communication interfaces required by business applications. It provides a high level of hardware and software security for these critical applications.
