Differential pressure transmitter P 29 halstrup-walcher GmbH

Differential pressure transmitter P 29

Differential pressure sensor

Vote

Ask for a quote Receive Documentation Contact the supplier

The pressure transmitter is particularly suitable for measuring volume flow of town gas supplies or other gaseous hydrocarbons such as butane, methane etc. in industrial furnaces or combustion plants. The instrument does not generate any ATEX zone as its design and technical safeguards mean it poses no ignition hazard. The measuring range is scalable in the range from 10 .. 100 %. This can be performed using a keyboard and display (optional). The measured values can be displayed in all standard units. A selectable time constant allows the transducer to be adjusted perfectly to the pressure conditions and thus ensures a stable output signal. The P 29 can be mounted either on a wall or on top-hat rails.

Measurement ranges (also ± measurement ranges): 250 / 500 Pa, 1 .. 100 kPa freely scalable from 10 .. 100 % within a measurement range Measurement accuracy: ±0.2 % or ±0.5 % FS (Measurement accuracy for the reference 0.3 Pa, for measuring ranges ≤ ±1.5 kPa) Medium: Natural gas Housing for surface mounting: Protection class IP 65 also for top-hat rail mounting Output: 0 .. 10 V, 0/4 .. 20 mA, ± 5 V Power supply: 24 VDC
Download the complete technical features

Drop your rating on Differential pressure transmitter P 29

Your answer to the rating from -

OTHER PRODUCTS DIFFERENTIAL PRESSURE SENSOR  FROM halstrup-walcher GmbH

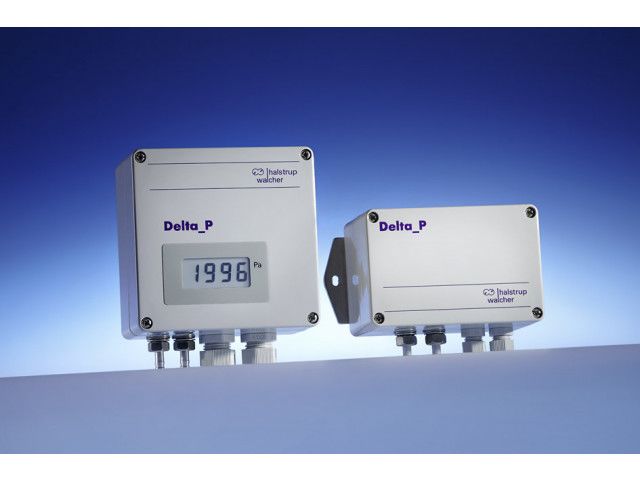

Differential pressure transmitter PU/PI/PIZ

Differential pressure transmitter PU/PI/PIZ

 Ask for a quote
Differential pressure transmitter P 34

Differential pressure transmitter P 34

 Ask for a quote

INTERNET USERS ALSO CONSULTED ON THE CATEGORY DIFFERENTIAL PRESSURE SENSOR

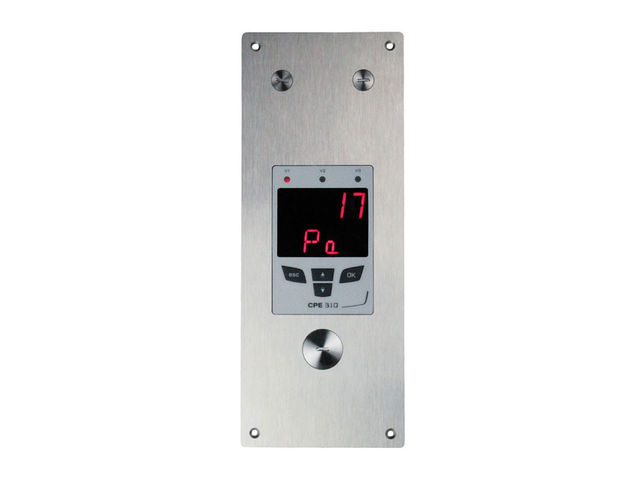

Temperature measuring instrument / pressure / relative humidity / CO2 concentration : C 310

Temperature measuring instrument / pressure / relative humidity / CO2 concentration : C 310

Ask for a quote
DIFFERENTIAL PRESSURE TRANSDUCER

DIFFERENTIAL PRESSURE TRANSDUCER

 Ask for a quote

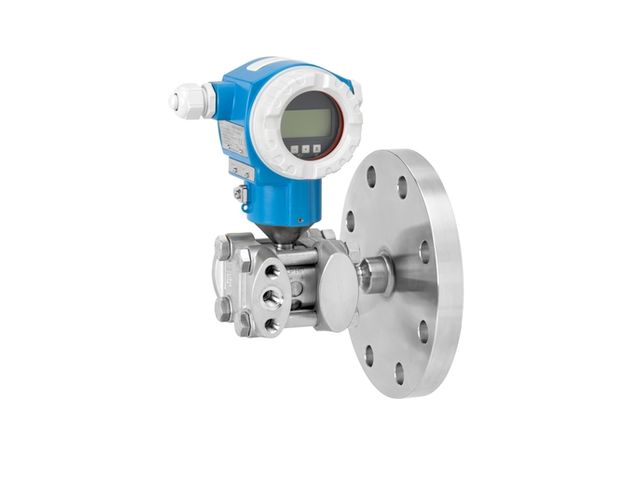

Electronic differential pressure | Deltabar FMD71
