Differential pressure transmitter PS 27

Pressure transmitter

Vote

Ask for a quote

Presentation

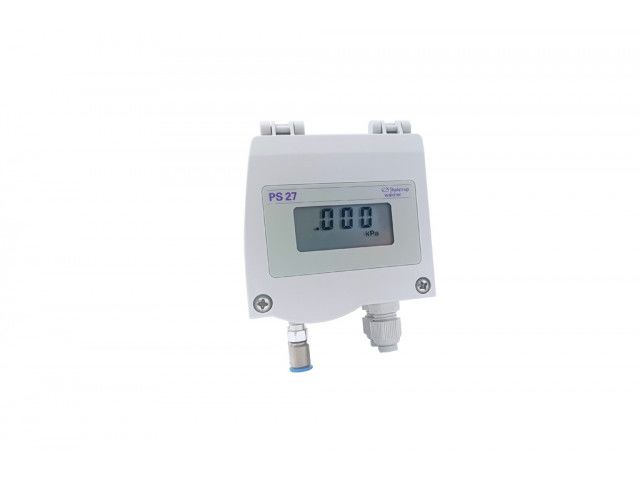

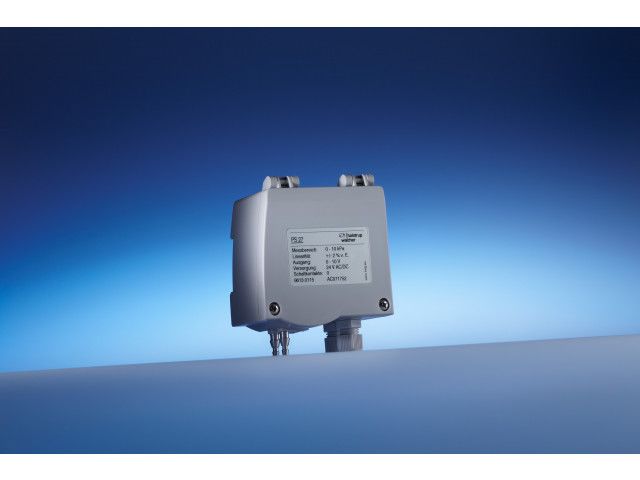

This compact differential pressure transmitter is particularly suited to filter and pressure monitoring applications in the heating, air-conditioning and ventilation industries. An optional display allows measurement values to be read directly on-site in Pa or kPa. An optional time constant (up to 4s) allows the instrument to generate an attenuated output signal, even under fluctuating pressure conditions. To reduce wiring costs, the instrument is also available in a version with two-wire technology (optional). The PS 27 can be mounted either on a wall or on top-hat rails. The instrument is available with an ISO factory calibration or DAkkS calibration certificate (optional).

Technical features

Measurement ranges (with ± measurement ranges and asymmetric): 50 Pa .. 100 kPa Measurement accuracy (reference 0.3 Pa, for measuring ranges ≤ ±1.5 kPa): ± 3% of the set value for < 100 Pa or ± 2% of the set value for ≥ 100 Pa Output: 0/2 .. 10 V, 0/4 .. 20 mA or 0 .. 5 V Medium: Air, all non-aggressive gases Power supply: 24 VAC/DC or 15 .. 32 VDC (two-wire) Housing for surface mounting: Housing for surface mounting IP 65, suitable for top-hat rail mounting

Download the complete technical features
