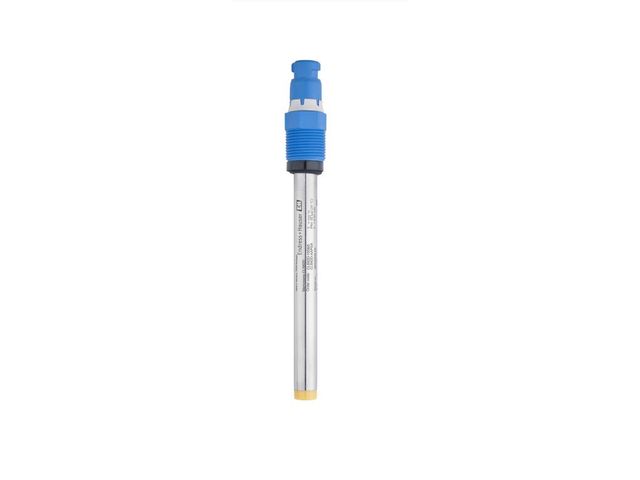

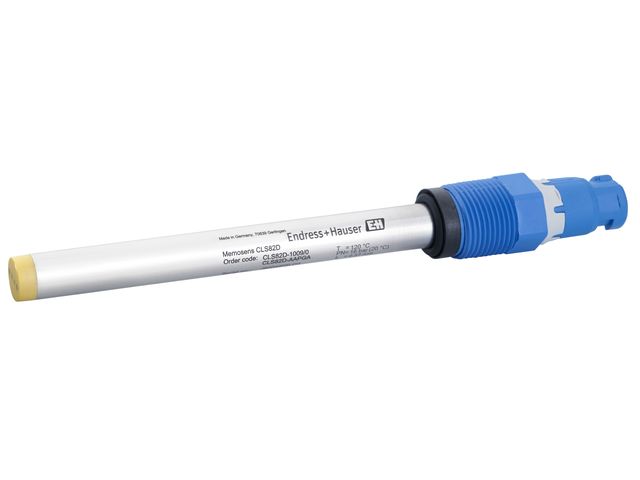

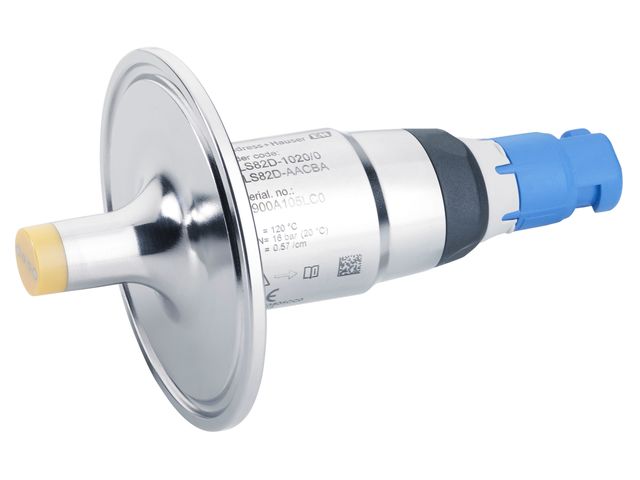

Digital 4-electrode conductivity sensor | Memosens CLS82D

Conductivity meters

Vote

“ - Broad measurement range - Hygienic design certified by EHEDG and 3-A - Absolute loop safety thanks to Memosens and unique electrode connection surveillance - Sterilizable and autoclavable - Quality certificate stating the individual cell constant - Logging of sensor-specific data for easy traceability and predictive maintenance - Convenient maintenance strategy with Memobase Plus for easy calibration and sensor management ”

Ask for a quote

Presentation

Memosens conductive conductivity sensor for hygienic applications in Life Sciences, Pharma and Food

Memosens CLS82D is a hygienic, digital sensor for applications with widely varying conductivity values, where it performs reliably, safe and fast.

Numerous certificates, various process connections and a small compact design ensure the perfect fit for your process. With Memosens digital technology, CLS82D combines maximum process and data integrity with simple operation.

It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Technical features

Measuring principle : Conductive Application : Phase seperation, chromotography, fermentation, CIP monitoring in small pipes, ultrafiltration Measurement range : 1 µS/cm to 500 mS/cm Material : Process connection: stainless steel 1.4435 (316L) / Sensor element: platinum and ceramic Dimension : Sensor diameter: 12 mm (0.47 inch) / Electrode length: depending on process connection Process temperature : -5 to 120 °C (23 to 248 °F) / Sterilization: max. 140 °C at 6 bar for max. 45 min (Max. 284 °F at 87 psi for max. 45 min) Process pressure :17 bar abs at 20 °C (247 psi at 68 °F) / 9 bar abs at 120 °C (131 psi at 248 °F) Temperature sensor : Pt1000 Connection : Clamp 1,5 Ingres protection : IP 68 / NEMA type 6P

Download the complete technical features
