Dot peen marking equipment dedicated to production lines

Turnkey Assembly System

Vote

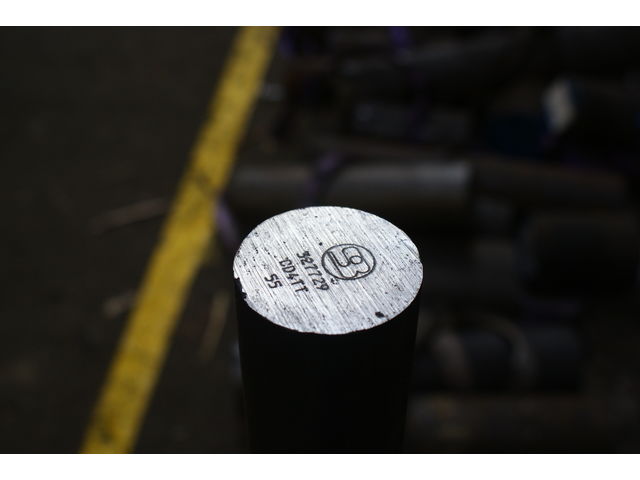

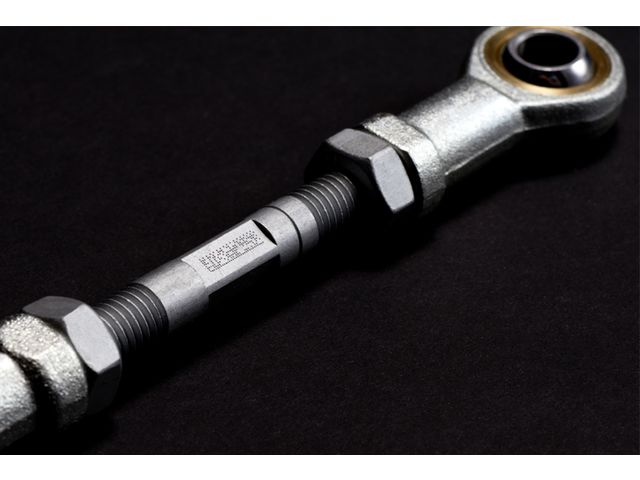

“ Various marking modes: Text, variable datas, serial numbers, time-stamp, logos and Datamatrix codes (2D), QR codes and standard OCR font ”

Ask for a quote

Presentation

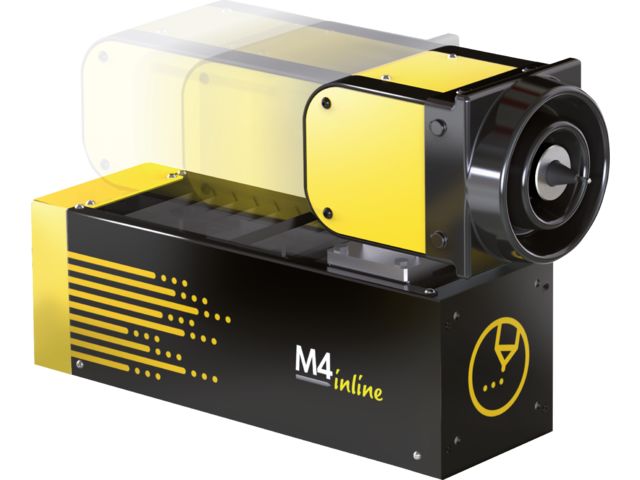

Thanks to its innovative design, the new marking equipment M4 inline can be easily integrated in production lines.

Easy to use, this new range of dot peen marking products designed for production lines ensures 30% time saving for the machine commisioning and installation but also a reduction of 40% of maintenance costs.

This marking equipment is equiped with the IDI* Mark & Track function which predict production outages and reduces their duration significantly thanks to automatic functions that determine maintenance requirements.

M4 INLINE BENEFITS

ROBUST: Frame in moulded aluminium. Each axis is fitted with a ball bearing and a transmision system with automatic compensation.
HANDY: Mounting connection cable can be connected at the back or on top of the marking head, to facilitate the integration. Three mounting bracket positions are available.
ERGONOMIC: Vertical or horizontal position, easily adaptable to any rackmount configuration due to a connection at the back of the machine.
FLEXIBLE: First integrated marking equipment fitted with a 16 bus card for greater time efficiency and productivity.

Technical features

RS232 connection, 16 bus card, Ethernet, 2 USB ports: Device & HOST Embedded software in different languages Memory capacity of 40Mb (up to 20.000 stored marking files High resolution (640x480) colour screen with icon based navigation Various marking modes: Text, variable datas, serial numbers, time-stamp, logos and Datamatrix codes (2D), QR codes and standard OCR font Fast updates through USB port
