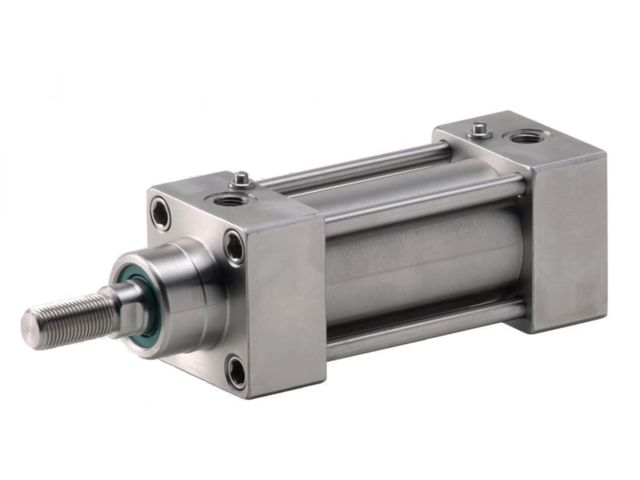

Double Acting Stainless Steel Cylinders ISO 15552 - AX Series

Double effect pneumatic cylinder

Vote

“ ✔ AISI 304 stainless steel ”

Ask for a quote

Presentation

The AX series cylinders are extruded tube and external tie rods, with mounting dimensions according to ISO 15552 standards.
The base unit is separate from the accessories, except for the one with "central trunnion" mounting.
The AX series is divided into 9 bores (Ø32,40,50,63,80,100,125,160,200).

The cylinders can also be supplied in the "through rod" version.

> Tube and extruded profile: AISI 304 stainless steel.
> Piston: NBR monobloc (Viton on request in non-magnetic), magnetic as standard.
> Rod: stainless steel AISI 316.
> Guide spout: self-lubricated sintered bronze bearing.
> Seal: Polyurethane + NBR (Viton on request in non-magnetic version).
> Heads: AISI 304 stainless steel.
> Ties and nuts: Ø 32 ÷ 100, stainless steel AISI 316
Ø 125 ÷ 200, stainless steel AISI 304

https://www.senga.fr/en/products-e-shop

Technical features

Working temperature: 0°C ÷ +80°C (with dry air -20°C) 0°C ÷ +150°C with VITON seals (dry air -10°C) Pressure: between 1 bar and 10 bar Pressure: between 1 bar and 10 bar Materials: aluminium - aluminium alloy; stainless steel; brass; > Tube: stainless steel AISI 304. > Stem: stainless steel AISI 316. > Rod and fixing nuts: AISI 304 stainless steel. > Rod and piston seal: polyurethane (V
