ÖLFLEX® SERVO 2YSLCY-JB - Motor cable for drives with high electrical power, EMI optimized and double screened.
-
EMC-optimised design
-
3+3 symmetry reduces common-mode interference effects and bearing currents
-
CPR: Article number choice under www.lappkabel.com/cpr
Benefits
-
EMC-compliant installation of power drive systems conforming to EN 61800-3
-
High power transmission for large drives
-
Low capacitance design enables longer cable connection between frequency converter and motor
-
Symmetrical 3+3 Version supports the reduction of damaging bearing currents
-
Versions with black outer sheath are suitable for outdoor use
Application range
-
Connecting cable between frequency converter and motor
-
In dry, damp or wet interiors
-
Paper industry
-
Chemical industry
-
Heavy industry
Product features
-
Flame-retardant according IEC 60332-1-2
Norm references / Approvals
-
Based on VDE 0207 / 0250 / 0295
Product Make-up
-
Fine-wire, bare copper conductor
-
Core insulation: PE
-
Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)
-
Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
-

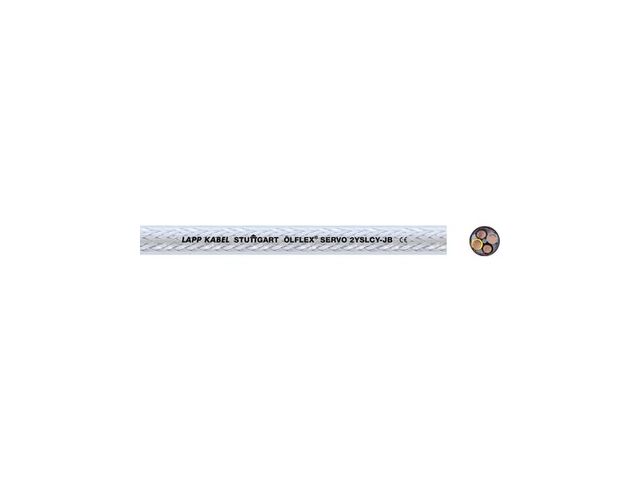

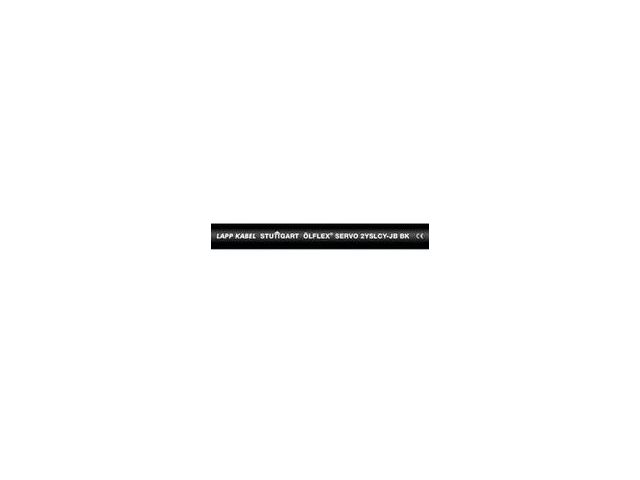

4-core version: optional transparent or black PVC outer sheath
-

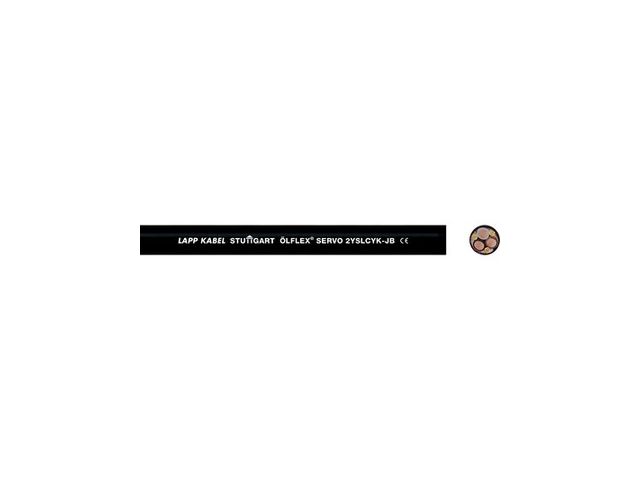

3+3 core version: PVC outer sheath, black - cold flexible
