Encoders Absolute singleturn Sendix 5873 Motor-Line, SSI, gray, binary, Ø 58 mm, optical.

Encoders Absolute singleturn Sendix 5873 Motor-Line, SSI, gray, binary, Ø 58 mm, optical. - FRITZ KÜBLER SARL

Quote Encoders Absolute singleturn Sendix 5873 Motor-Line, SSI, gray, binary, Ø 58 mm, optical.

Encoders Absolute singleturn Sendix 5873 Motor-Line, SSI, gray, binary, Ø 58 mm, optical. FRITZ KÜBLER SARL

Encoders Absolute singleturn Sendix 5873 Motor-Line, SSI, gray, binary, Ø 58 mm, optical.

Absolute encoders

Vote

“ The standard for direct drives. Encoder with conical shaft. ”

Ask for a quote

Presentation

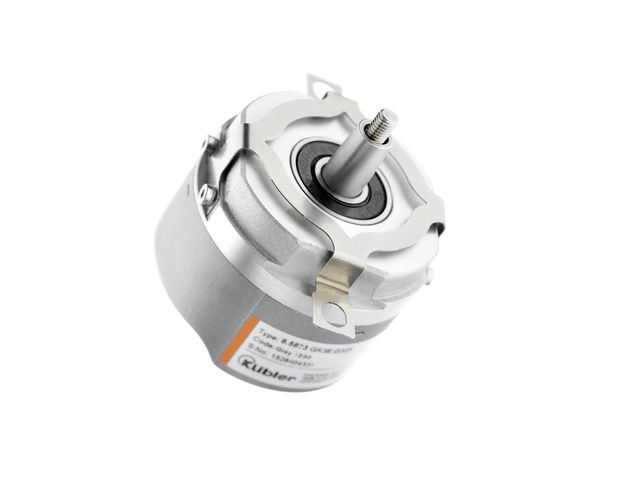

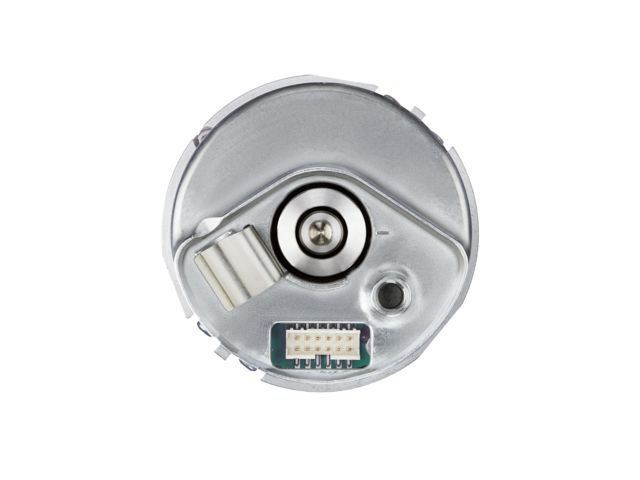

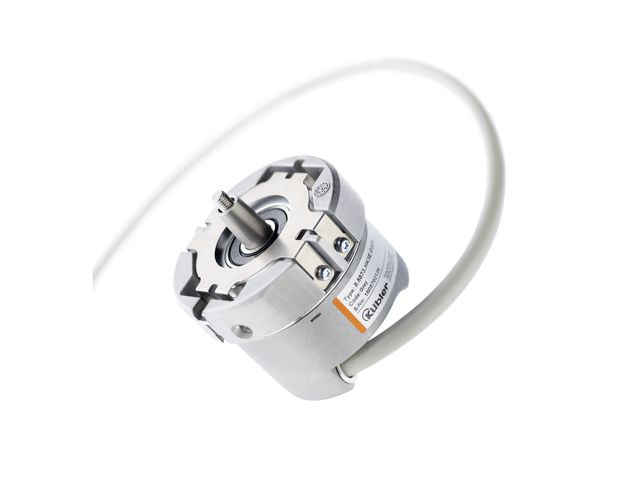

The absolute encoder Singleturn Sendix 5873 in the Motor-Line version with SSI or BiSS interface is predestined for mounting on direct drives. With the high fully digital 21 bit resolution or 17 bit + 2048 ppr SinCos incremental track, the drive is optimally controlled. Your benefits: Plug-and-Play during commissioning including electronic data sheet, as well as the option of setting the absolute measuring system to a predefined position value.

Technical features

Dimension: Ø 58 mm Shaft type max. Protection level max. IP65 Connection types : Câble tangentiel, Connecteur circuit imprimé Measuring principle : optical Resolution max.: 2.048 ppr incremental21 bits singleturn Interfaces: SSI, binary, SSI, gray, SSI + 2048 ppr SinCos, SSI + 2048 ppr RS422, BiSS, BiSS + 2048 ppr SinCos, BiSS + 2048 ppr RS422

Download the complete technical features
