Enertrace : paperless plug & play recorder

3 ECONOMICAL MODELS : The paperless plug & play recorder that meets your traceability needs ENERTrace is now also available in optimized versions:

• 3 analogue inputs
• 6 analogue inputs
• 3 negative U/I inputs

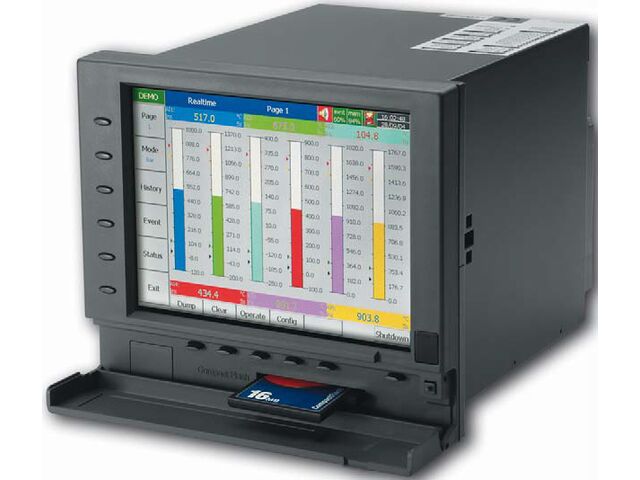

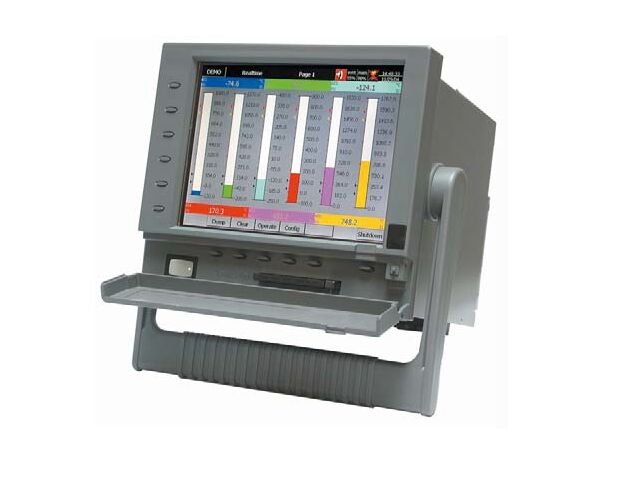

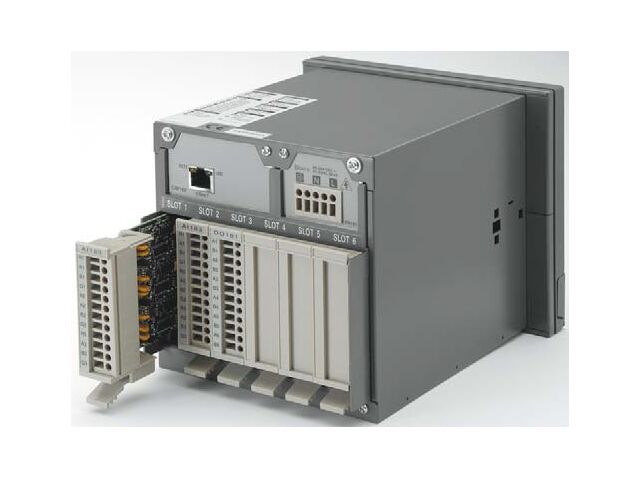

  ENERTrace acquires, records and displays all electrical values of HV and LV networks in real time, through all types of transducers (TRIAD, T82 or Modulic from the Enerdis range).   Large data storage capacity and automatic memory management: transfer to Compact Flash card (up to 1 GB) Data secured by encryption Very high-definition VGA TFT screen: 6.1" – 256 colours Inputs/outputs that can be configured and extended : up to 18 analogue measurement channels (mV, V, mA, T°, etc.) or 12 logical inputs, insulated and configurable, and up to 12 relay outputs, according to the combinations High accuracy: ±0.1% on analogue U/I inputs Excellent performance in terms of response time and sampling rate: resolution and polling at 200ms Auxiliary power supply with large dynamic range: 90 to 264Vac / 11 to 370Vdc Compact: can easily replace existing paper recorders Ethernet and RS232/485/422 links: ModBus TCP/IP and ModBus RTU protocols TracerManager 1 sofware provided as standard: programming, collection and processing of data and alarms Portable version available   TracerManager 2 software allows display of real-time data on PC.
