Evobot AMR collaborative mobile robot

Vote

“ - Perfectly secure mobile equipment - Complete navigation solution for optimal vehicle control - Maximum autonomy - Automatic recharging system - Multiple configurations (lifter, conveyor, cobot...) ”

Ask for a quote

Presentation

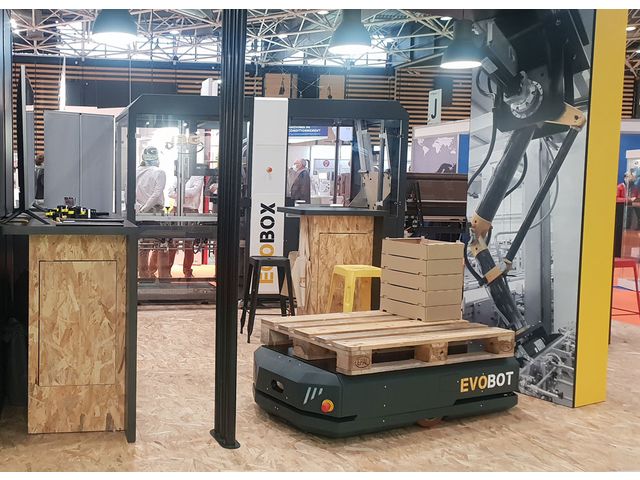

The AMR Evobot collaborative mobile robot is an autonomous mobile robot capable of carrying and towing loads of up to 2 tons and 1.5 tons with lifting equipment. Its movement speed can go up to 2 meters per second (7.2 km/h).

To guarantee a natural cohabitation between the Evobot robot and humans, the signaling has been particularly studied:

A set of LEDs signals switching on and movement
A blue spotlight is projected on the ground, front and rear, to signal the arrival of the vehicle
An audible signal can be programmed in a sensitive area.

The Evobot robot comes with a complete navigation solution that calculates the position (simple and reliable localization), controls its movement and can interface directly with the equipment's safety laser scanners.

The AMR Evobot robot is sold with a fully automatic battery recharging station. The Evobot can be recharged either between each mission or at the end of the exercise, manually (triggered by the operator) or automatically (pre-configured).

To best meet customer applications, it is available in different configurations:

AGV with lifter
AGV with cobot arm
AGV with tray conveyors
AGV with telescopic arm
AGV with pallet conveyors

Technical features

Maximum carried load weight: 2 000 kgs Maximum towed load weight: 2 000 kgs Maximum speed: 7 km/h Robot dimensions: 1520 (L) x 780 (l) Automatic loading on feeding station Security by front and rear scanner radars (360° vision)
