Exos Leak / O2 / CO2

Food safety

Vote

Ask for a quote

Presentation

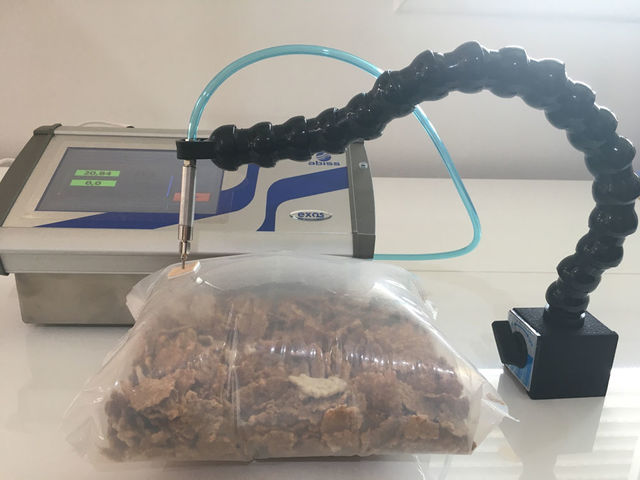

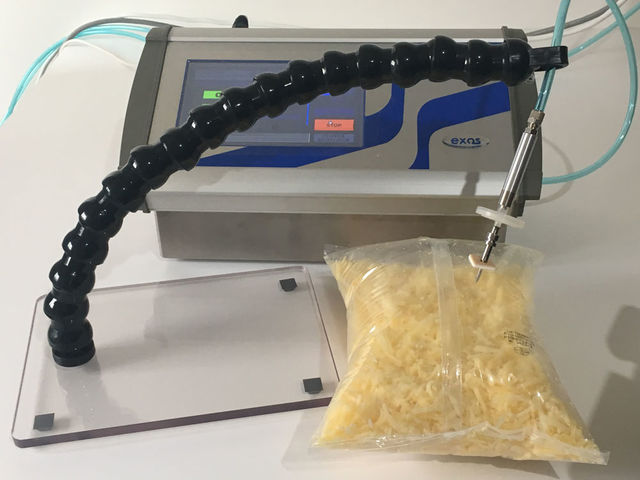

The EXOS LEAK / O2 / CO2 allows you to measure the rate of O2 / CO2 and the airtightness for all types of packaging, containers and pneumatic circuits. This measurement device also checks the resistance of sealing using a bursting test. These three tests can be carried out in quick succession on the same packaging. The EXOS lets you inspect the integrity of your packaging, and can be used in the laboratory as well as during the manufacturing process.

THE + PRODUCTS

    The option of combining 3 measurements in 1 same test: O2/CO2 gas analysis; Micro-leaks; Bursting
    Standards :
        DIN 55508-1 : Flow measurement under constant pressure
        ASTM F1140 – Seal resistance
        ASTM F2054 – Burst testing
    Blocked circuit detection
    Measures with low excessive pressure
    Breathability measurement (micro-perforated films)
    Fully traceable via an internal spreadsheet
    Excessive pressure can be fitted manually or automatically
    Remote maintenance 7 days a week, with remote connection available

Technical features

Ingress protection of enclosure : IP 41 (54 option) Measurement device : Bench-mounted Enclosure : Enclosure Aluminium, stainless steel, ABS Weight : 5 kg Width : 340 mm, Height : 170 mm, Depth : 230 mm Power : 100-240VAC -50/60Hz - 63W Feed pressure : 4 to 8 Bar (dry and oil free filtred to 20 µm) filtered at 20μm Inlet pneumatic connection diameter : 4 x 6 mm tube connection Memory capacity : 4 to 32go Display : Color touchscreen 7’’

Download the complete technical features
