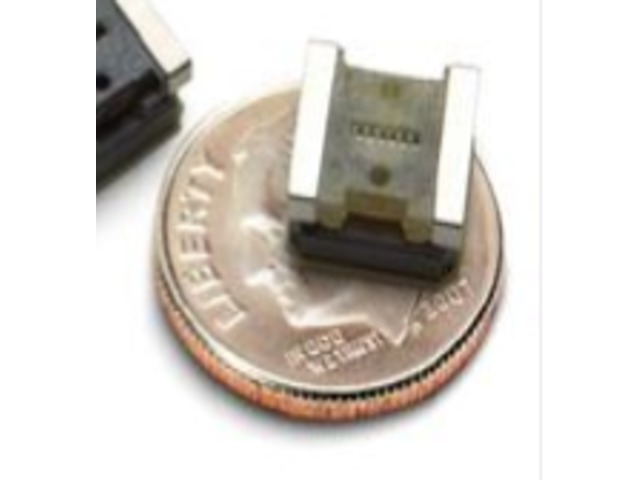

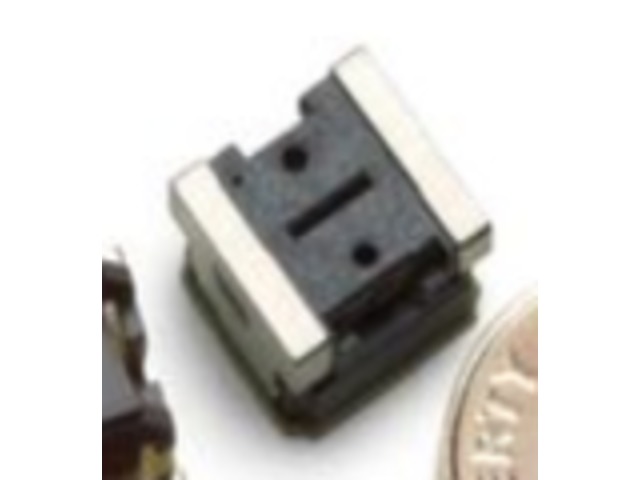

The AFBR-77D1SZ Twelve Channel, Pluggable, Parallel Fiber Optics Transmitter and AFBR-78D1SZ Twelve Channel, Pluggable, Parallel Fiber Optics Receiver are high performance fiber optics modules for short-range parallel multi-lane data communication and interconnect applications.

The high density optical modules are designed to operate over multimode fiber systems using a nominal wavelength of 850 nm.

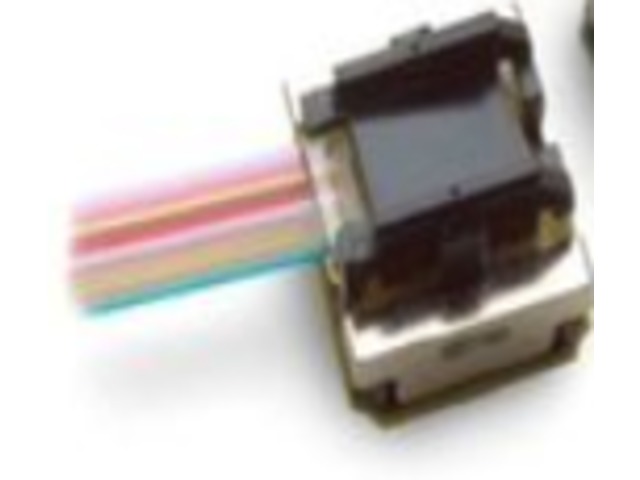

The optical interface requires the user to provide a custom designed optical turn 1×12 ribbon cable PRIZM^® LightTurn^® connector.

Technical features

Compliant to IEEE 802.3ba 100GbE (100GBASE-SR10 and nPPI) per lane Compliant to 12×QDR Infiniband High Aggregate bandwidth: 120 Gbps per module High density footprint: 7.8 mm × 8.2 mm × 3.9 mm size Separate transmitter and receiver modules; 850 nm VCSEL array in transmitter; PIN array in receiver Links up to 150 m at 10.3125 Gbps with OM4 4700 MHzâˆ™km 50 μm MMF Optical Interface: PRIZM® LightTurn® optical turn 1×12 ribbon fiber connector Electrical interface: 9×9 micro-LGA with 0.7424 mm pitch Low Power consumption: 3.0 W Max per Transmitter / Receiver pair (0 °C to 70 °C operating range)
