Flowmeter for liquids EGM

Liquid flowmeters

Vote

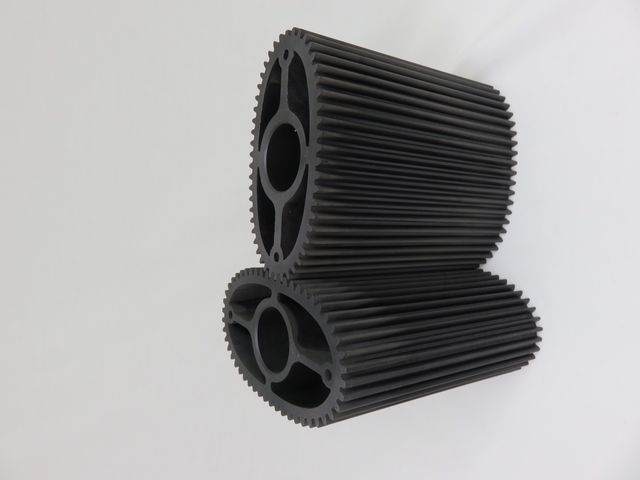

“ - Oval Gear technology for high accuracy and repeatability D Direct volumetric measurement of flow - Accuracy of reading is not affected by temperature and viscosity changes - Measures high and low viscosity liquids - Only two moving parts - "Fuel Consumption" option can tolerate flow pulsations and has an inbuilt temperature sensor to correct for the fuel density changes ”

Ask for a quote

Presentation

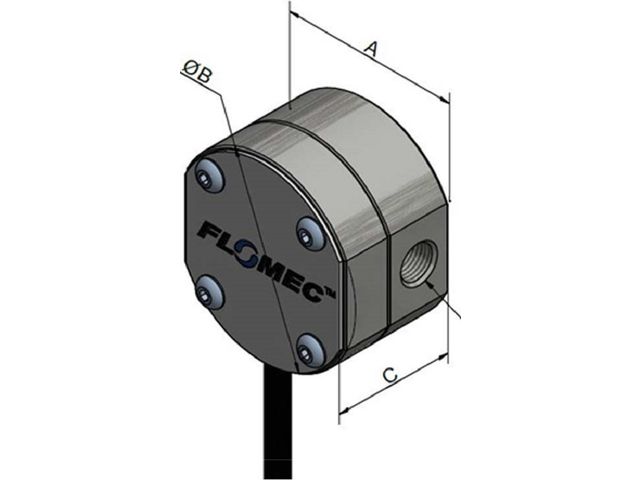

FLOMEC® EGM-Series Electronic Flowmeters

Are Hall Effect pulse meters designed for volumetric flow measurement of clean liquids across a broad range of applications in the automotive, aviation, mining, power, chemical, pharmaceutical, and petroleum industries. The EGM-Series will produce accurate and reliable measurements of almost ail clean liquids, including but not limited to; alcohols, fuels and oils, water based salts and solutions, corrosion inhibitors, brake and transmission fluids, greases, emulsifiers, adhesives, insecticides, and some aggressive chemicals.

Fuel Consumption
EGM-Series flowmeters with the Fuel Consumption option (lntegral Option 2) are equipped with an integral PT100 temperature sensor which allows for accu rate measurement of fuel consumption on combustion engin es by correcting for temperature differences from the in let to outlet of the engine. lt also includes the Pulsating Flow electronics that eliminate the effect of pulsations in the flow a long with a PT100 sensor for measuring temperature in the flow system.

Technical features

Débit : 1 lph - 80 lpm [0.26 USG/Hr -21.1 USG/min] Sizes : 1/8 Temperature range : -15°C to +80°C [5°F -176°F] Factory calibration available Fuel consumption option : can tolerate flow pulsations and has an inbuilt temperature sensor to correct for the fuel density changes

Download the complete technical features
