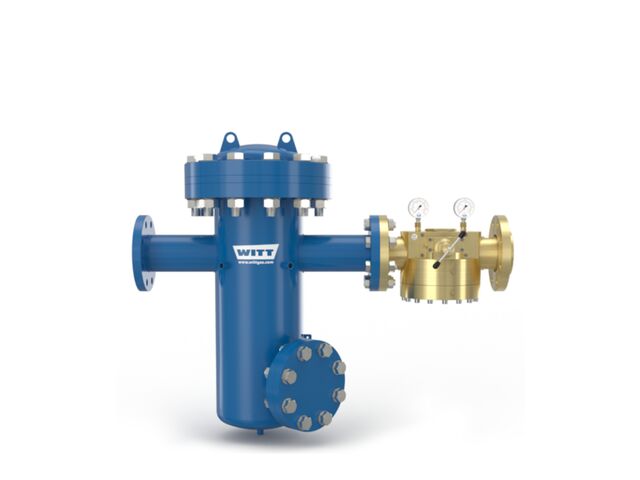

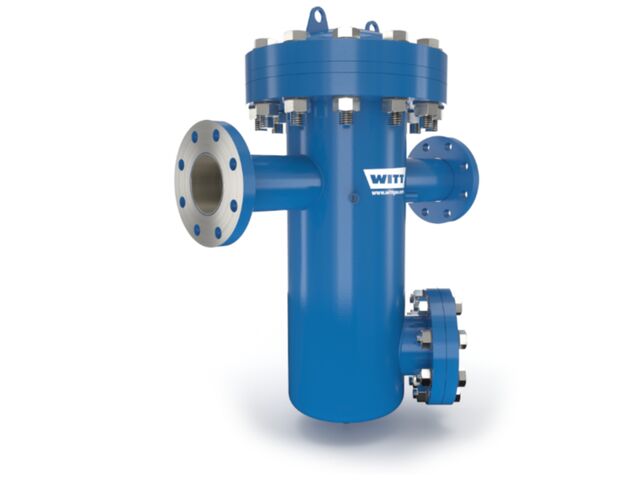

3" gas filter for filtering out mechanical impurities and condensate in pipelines, heavy unit for very high flow rates
Benefits
-
ultra fine filtering out of mechanical impurities through bronze filter inserts
-
broad range of applications – compatible with many technical gases
-
change of filter possible while installed due to user-friendly design
-
high flowrate owing to flow-maximising design (4 500 Nm3/h for O2 at 30 bar and 50 mbar pressure drop)
-
condensates can be collected and removed using condensate drain
-
optimized design for easy installation and maintenance
-
extended flange connections for the simplest possible mounting of this heavy unit
-
connections on the inlet and outlet side to allow for pressure monitoring
-
reliable filtering performance increases service life of downstream components and equipment
Operation / Usage
-
Gas filters are designed for installation in pipelines
-
must be installed vertically
Maintenance
-
condensates should be drained at regular intervals
-
filter inserts must be checked regularly and replaced if necessary
Options
-
electronic differential pressure monitoring
Approvals
Company certified according to ISO 9001 and PED 2014/68/EU Module G
CE-marked according to: PED 2014/68/EU
Designed for Oxygen Service in accordance with EIGA 13/20, CGA G-4.4 and AIGA 021/20: Oxygen Pipeline and Piping Systems
