Halogen-free power cable with rated voltage 0,6/1 kV for fixed installation.
N2XH - Halogen-free power cable acc. HD 604/VDE 0276-604. Building installation cable with improved fire characteristics for fixed installation
-
CPR: Article number choice under www.lappkabel.com/cpr
-
Halogen-free alternative to the PVC installation cable NYY-J, NYY-O
Application range
-
For installation on or under the plaster
-
Fixed installation indoor, in air or concrete
-
For buildings or industrial plants with a high density of people or valuable assets
-
No direct burial or installation in water
-
Outdoor laying only when protected from direct sunlight and other external impacts
Product features
-
Flame-retardant according IEC 60332-1-2
-
No flame-propagation according to IEC 60332-3-24
-
Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
-
Low smoke density according to IEC 61034-2
Norm references / Approvals
Product Make-up
-
Bare copper wire conductor
-

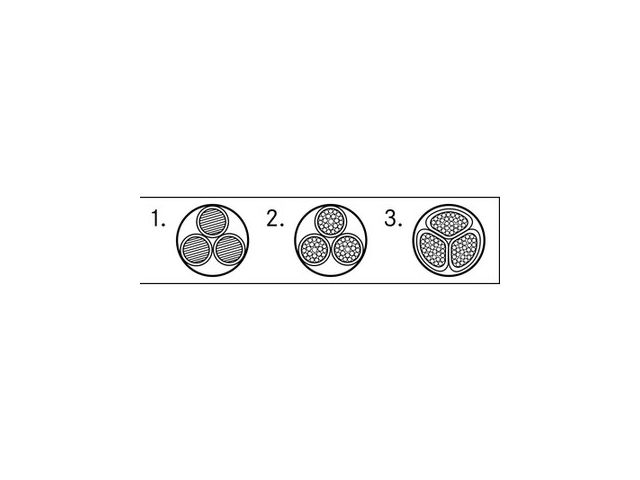

Abbreviations "re", "rm", "se", "sm":
r = round conductor form;
s = sectorial conductor form;
e = single-wire conductor;
m = multi-wire conductor;
-
Core insulation: Cross-linked Polyethylen (XLPE)
-
Filling compound over the core assembly
-
Outer sheath: halogen-free, thermoplastic polyolefin compound
