Presentation

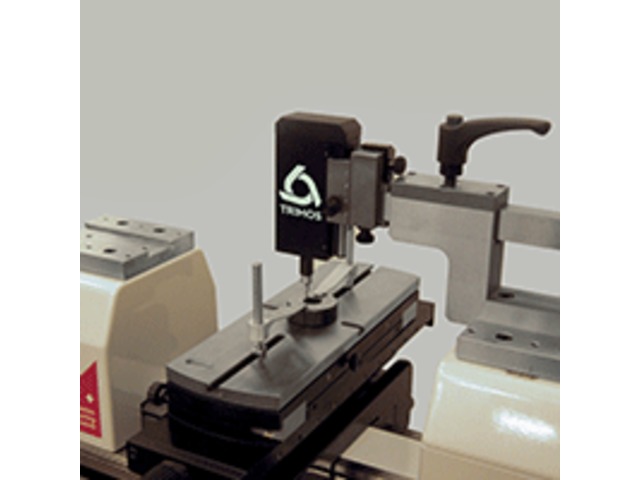

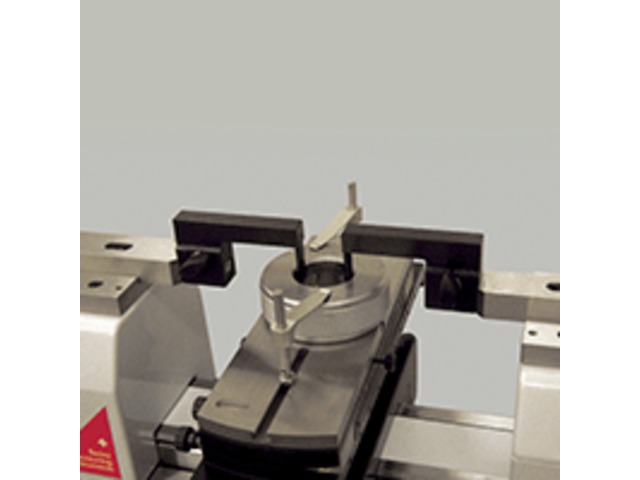

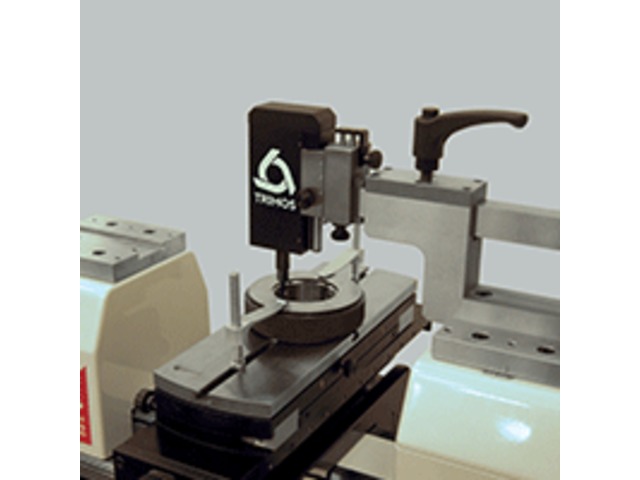

The Labconcept and Labconcept Premium are high precision calibration systems that meet the most sophisticated requirements.

The up-to-date, well designed modular concept enables extremely secure functioning, facilitates the manipulation and therefore increases the productivity in the measuring laboratory. Simplicity and high accuracy have been associated.

This new concept, integrating a computer and a touch screen as well as the appropriate Trimos-WinDHI software with all necessary measuring functions guarantees the best results. A temperature compensation system as well as a gauge management system can be installed to enhance the system performance.

Instruments with a measuring range from 300 to 2000 mm are available, all made in one single piece. All measuring ranges being direct, it means that the whole measuring range is available without adjustment or intermediate re-calibration.

• Meets the requirements of all ISO 9000
• PC with exclusive software WinDHI
• High precision measuring system
• Dimensionally stable instrument base
• Adjustable measuring force (0-12 N)
• Large range of accessories
• Direct measurement over the whole measuring range

Technical features

Repeatability (2s) µm : 0.1, 0.05 Resolutions mm (in) : 0.01 ÷ 0.00001 (.0001 ÷ .000001) Max. displacement speed mm/s : 1500, 400 Measuring force N : 0 ÷ 12 Operational temperature °C : +10 ÷ +40 Temperature of storage °C : -10 ÷ +40 Relative humidity % : 20 ÷ 80
