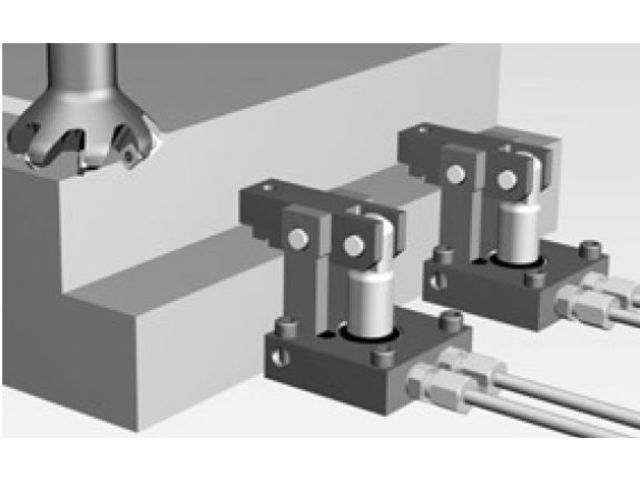

Hinge Clamp B1.825 ROEMHELD

Hinge Clamp B1.825

Positioners and Tightening components

Vote

Ask for a quote Receive Documentation Contact the supplier

Description

When pressurising the element, the piston moves from the unclamped position upwards. The clamping lever swivels forward by means of the two links and at the same time downwards onto the workpiece. The clamping lever is provided with an internal thread to accept a contact bolt, which can be easily exchanged. Oil supply is made from the back by means of fittings.

Advantages
● Compact design
● Large clamping area of 6 mm
● The clamping lever is completely retracted in off-position
● Interchangeable contact bolts
● 3 clamping levers available
● Clamping lever can be adapted to the workpiece
● Mounting position: any
● Low-cost

Download the complete technical features
