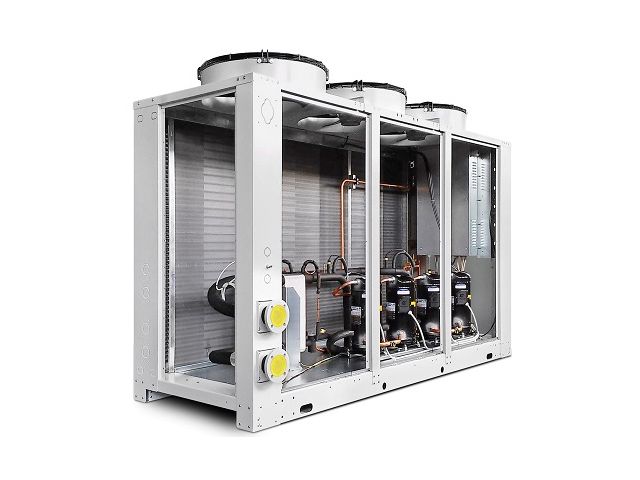

HITEMA chiller ENRF series 23 to 355 KW

Chillers

Vote

“ • With free-cooling for energy saving • Air condensation • Scroll compressors • Complete hydraulic circuit: tank, pump, manometer, flow controller, etc. • Guaranteed energy saving ”

Ask for a quote

Presentation

Free-cooling

– The chiller is equipped with a “FREE-COOLING” system to save energy by using outdoor air when weather conditions permit.

The regulation system compares the outdoor temperature, the glycol water temperature at the “free-cooling” battery input, and the “free-cooling” (Delta) setpoint, in order to support total or partial chilling using ambient air, thereby reducing the use of refrigeration compressors and therefore the electric energy consumed.

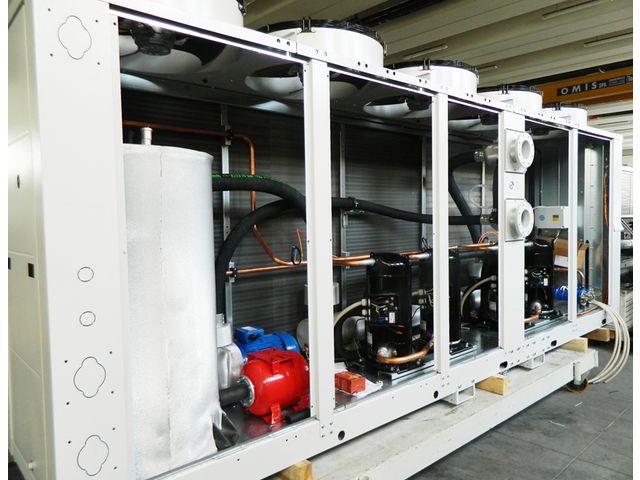

– Compressor: Scroll type

– Evaporator : Coaxial exchanger immersion type (ENRF 22 to 100) or multi-tubular type (ENRF 130 to 370)

– Air condenser: Battery of copper tubes and aluminium fins

– Fan: Helical type

Refrigeration circuit:
Thermostatic pressure-reducing valve
Dehydrating filter
Liquid indicator
Liquid solenoid valve
High-pressure safety switch
Low-pressure switch
High-pressure manometers & Low pressure manometers

Complete steel hydraulic circuit including:
Steel pressurised buffer volume (stainless steel as optional extra)
2.1 bar centrifugal pump
Flow controller for evaporator protection
Water manometer

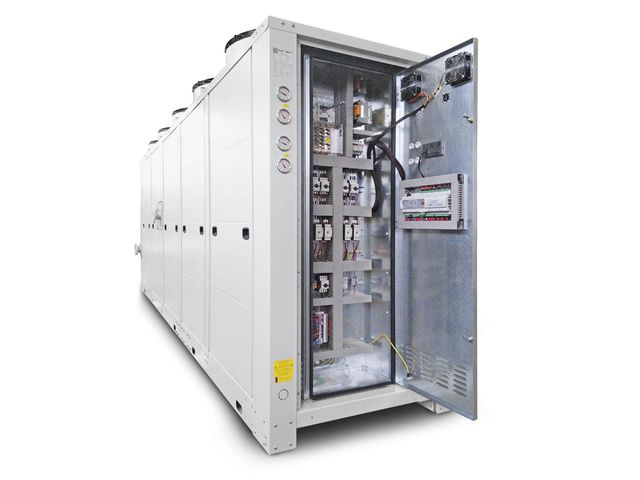

Regulation : CAREL µC² microprocessor, with digital display

Technical features

With free-cooling for energy saving Air condensation Scroll compressors Complete hydraulic circuit: tank, pump, manometer, flow controller, etc. Guaranteed energy saving
