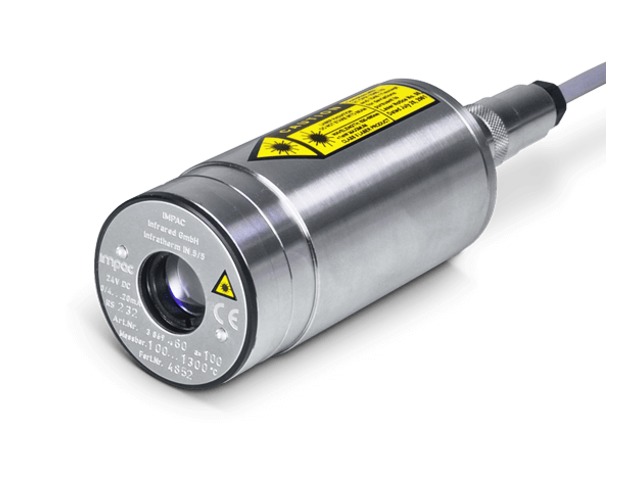

IMPAC Pyrometer IN 5/5 LumaSense Technologies GmbH

IMPAC Pyrometer IN 5/5

Pyrometers

Vote

Ask for a quote Receive Documentation Contact the supplier

Compact pyrometer for temperature measurement of glass and quartz glass surfaces. Temperature ranges: 100 to 2500 °C.

The pyrometer IN 5/5 as well as the instruments of series IN 5/5 plus are specially designed for non-contact temperature measurement of glass surfaces and quartz surfaces.

The instruments differ in their specification:

The IN 5/5 is a digital pyrometer in two wire technique. This technique combines the high accuracy of the digital signal processing with the simple connection and operating with two wires.

Additionally to the analog output the plus types are digital pyrometers equipped with a digital interface, enabling temperature indication and storage on a PC.

Also a temperature sub range can be configured and the instrument parameters can be adjusted remotely.

The version IN 5/5-L plus is equipped with optics with better fields of view for the measurements of small objects.

The high-speed version IN 5/5-H plus has a shorter exposure time of only 10 ms and is suited for fast measuring tasks.

For optimal match of the instrument to the application (size of the measuring object, distance) different optics are available.

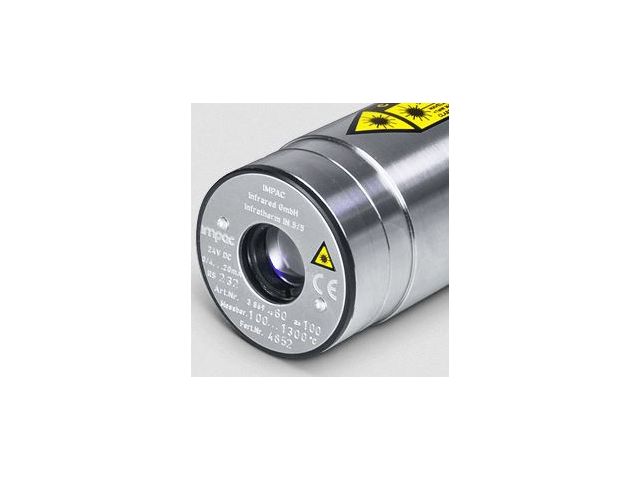

For a precise alignment of the pyrometers to the measuring object, most of the plus types are equipped with a laser targeting light.

Sub range : The plus instruments are user adjustable with minimum span of 51°C Spectral Range : 5.14 μm IR Detector : Thermopile Data handling : Digital Optics : Zinc-Sulfide lens (ZnS) Power Supply : 24 V DC (10 to 30 V) Power Consumption : max. 20 mA Analog Output : 4 to 20 mA (linear) Load : max. 700 Ω at 24 V (max. 100 Ω at 12 V) Parameters : Adjustable on the pyrometer: Emissivity, exposure time.
