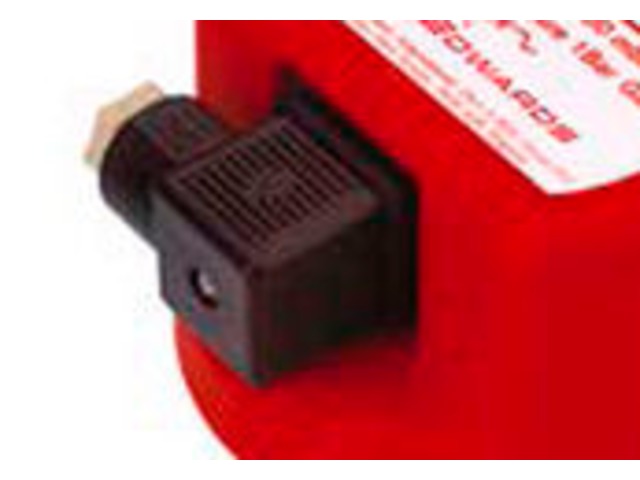

IS16K Vacuum Interlock Switch

Vote

Ask for a quote

Presentation

The IS16K vacuum interlock switch is designed to safeguard the operator by ensuring that electrical circuits in the vacuum chamber do not remain energized when the system is let up to atmosphere.

Typical applications include interlocking of the HT cleaning or process circuits on thin film deposition and vacuum systems.

The IS16K is high vacuum compatible and corrosion resistant, with all wetted parts made from stainless steel. A high current rating allows direct switching of loads without additional relays or external power supplies.

Technical features

Fixed set-point : 640 ±120 mbar Maximum switching differential : 100 mbar Maximum working pressure : 1 bar gauge (2 bar absolute) Electrical rating : 10 A resistive, 5 A inductive at 250 V a.c Electrical connection plug : Type 283 mPm Internal volume : 7 cm3 Materials in vacuum : Stainless steel Leak rate : <1 x 10-9 mbar l s-1 Enclosure classification : IP52 Weight : 0.7 kg

Download the complete technical features
