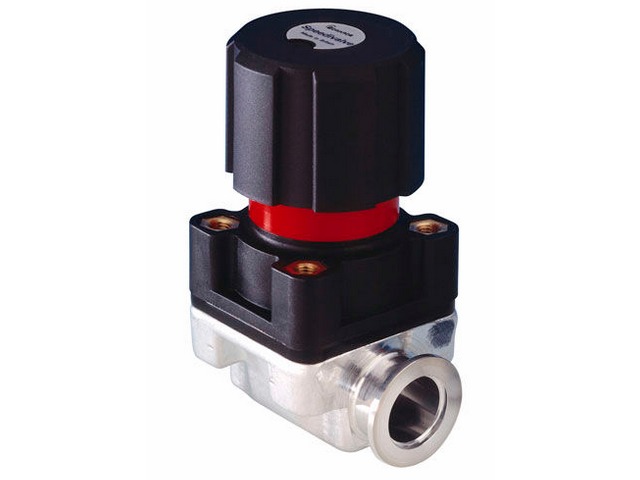

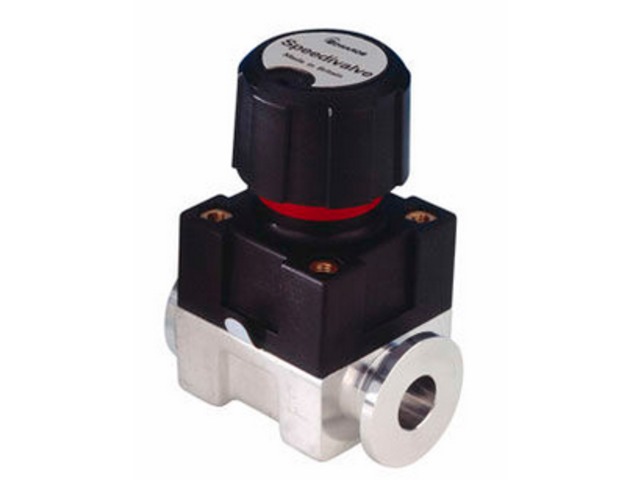

Isolation valves SP10K, Nitrile Diaphragm EDWARDS SAS

Isolation valves SP10K, Nitrile Diaphragm

Membrane valves

Vote

Ask for a quote Receive Documentation Contact the supplier

Edwards SP Speedivalves are diaphragm sealed in-line, isolation valves. The construction consists essentially of a flexible elastomeric dia­phragm which is sealed onto a lightly polished seat by a screw thread mechanism. The mechanism is isolated from the system by the diaphragm resulting in an extremely rugged and ‘dirty’ system tolerant valve.

The valve terminates in NW flanges and can be pipeline supported or panel mounted. (SP40K is pipeline supported only).

Coupling : 10-7 mbar ls-18 x 10-8 Torr ls-1 Pressure rating using Co-Seal : 9 bar / 131 psi Ambient operating range : 0 to 40 °C Ambient storage range : -10 to 40 °C Baking temperature : 60 °C
