Presentation

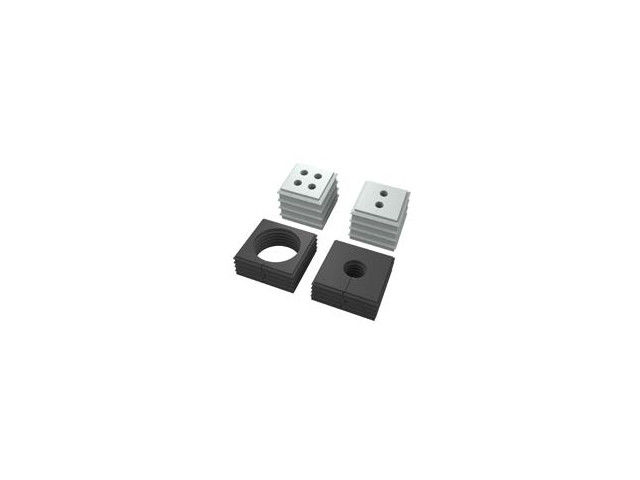

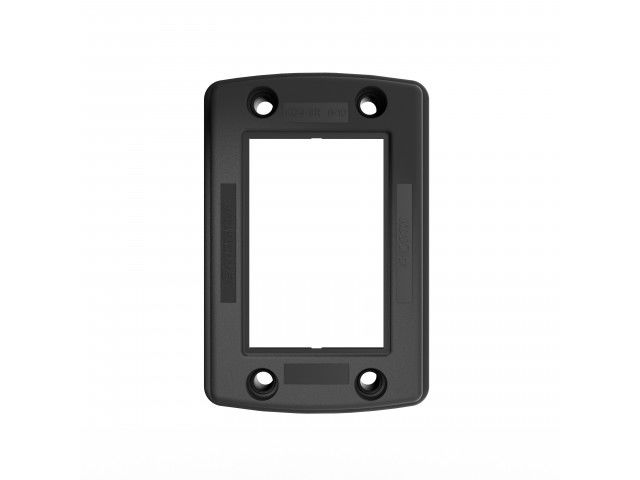

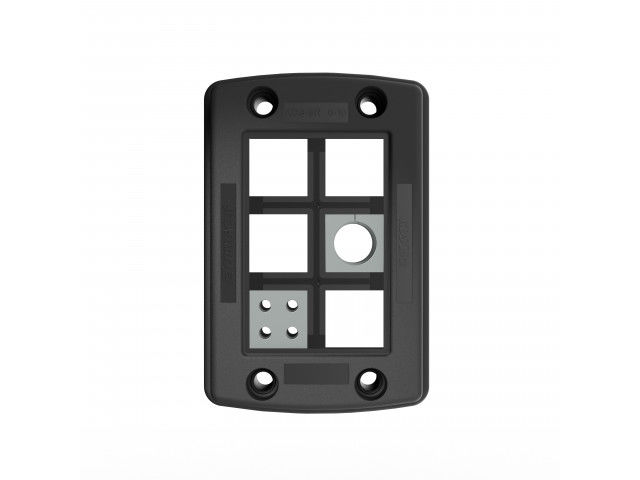

Cable entry system KDSClick A revolutionary cable entry system! Fast. Safe. Very simple. Our KDSClick cable entry system is a cable management solution for switchgear cabinets, that features secure seals and strain relief for pre-assembled and non-assembled cables – with or without connectors. KDSClick saves you time and provides you with maximum versatility. The modular design of these three basic components guarantees maximum versatility, variability and variety. 1. Frame The frame is quick and easy to assemble. The foamed seal guarantees an optimal seal with IP66 protection. 2. Inlay The click-in inlays allow for a requirements-based dimensioning of the frame opening for the seal being used. 3. Seal The seal’s tapered shape allows it to be easily pressed in; it reliably seals the gaps and provides strain relief working towards accordance with DIN EN 62444. Ca. 90 different seals that can be used for sealing cables of various diameters and sizes.

Technical features

Article description: Cable entry Colour: Black Length (mm): from 81 to 153 mm Width (mm): 70 mm Height (mm): 19,6 mm Material: PA 6.6 Protection: IP 66 Length wall cut-out (mm): from 46 to 113,50 mm Width wall cut-out (mm): 46 mm Temperature range: -40°C to 120°C

Download the complete technical features
