Presentation

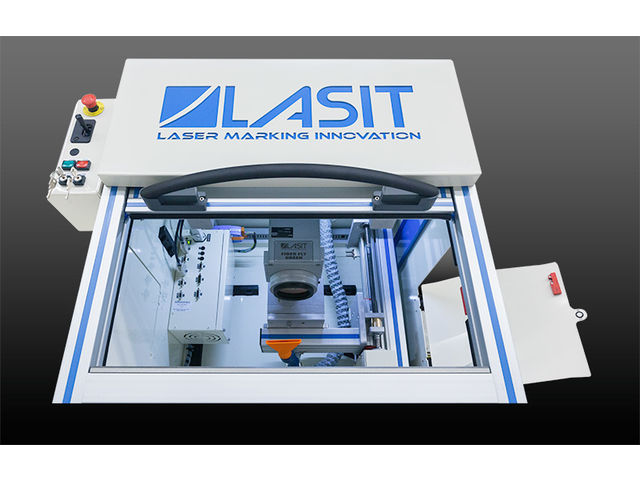

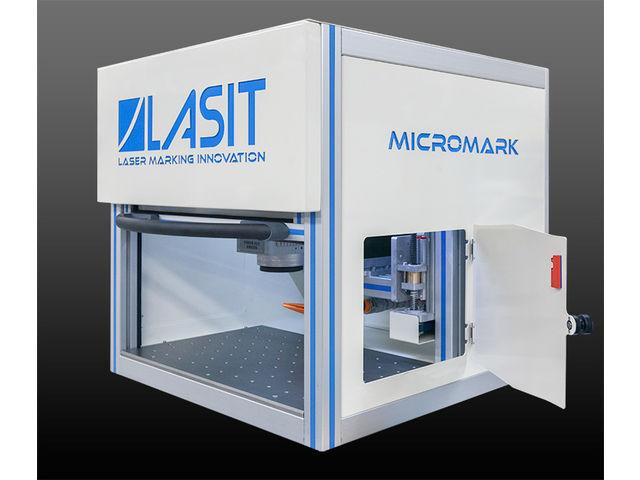

The MicroMark is a Class I laser marking station. The MicroMark is a fully enclosed compact desktop system fully CE and USA CDRH certified. The MicroMark comes with a convenient manual door and with viewing glass to allow a clear view of the marking field. The standard marking area of the machine is Ø140mm but it is possible to install lenses with a different focal length to increase the field from Ø87mm to Ø220mm.

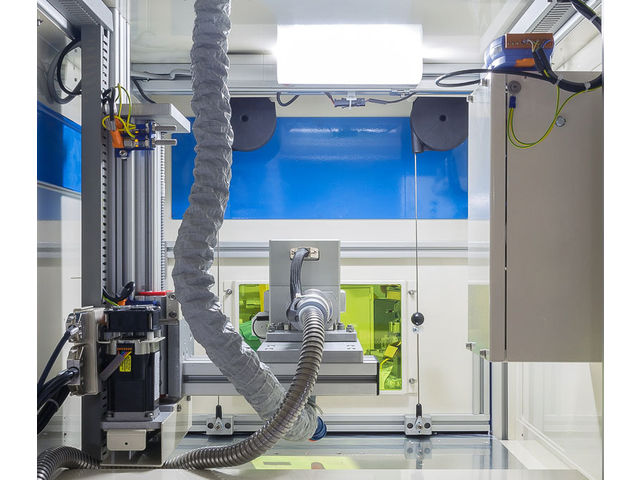

The laser can be moved along the Z axis supporting work pieces up to 200 mm in height. The axis movement can be both manual and motorized with integrated encoder and completely programmable from the PC.

The motorized Z axis offers a Joystick as well which together when used with the SmartFocus can increase productivity by providing quick focusing and alignment of area to be marked. The motorized z facilitates quick positioning and focus providing optimal marking on flat surfaces, cylindrical parts as well as complex geometries with curves and varying angles.

Technical features

Working position: Seated – Workbench Working plane dimensions: 615 x 410 Max weight on the plane: 40Kg Markable max height (ø 140mm): 200mm Available marking areas: ø100, ø140, ø220 Type of engine: Up to 2 motors with encoder Joystick: A handle for control Z axis Type of door: Manual folding door Exhaust fan and filter: Supplied by Lasit which can be integrated Pc and monitor: Provided by Lasit but separated
