Laser marking - FlyAir Green - LASIT

Laser marking

Vote

Ask for a quote

Presentation

FlyAir Green is a solid state laser (active material YVO4 ), with a pumping axial and duplication crystal of the laser beam inside the cavity. The laser beam that is generated has a wavelength of 532nm and is characterized by green light. The laser module is completely sealed, assembled and pre-aligned in a White Room.

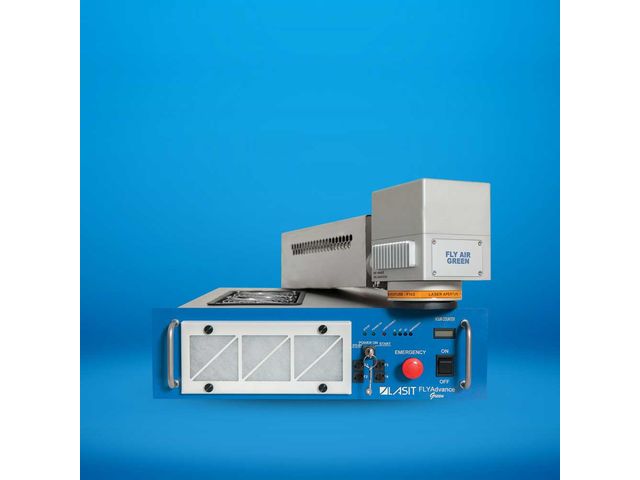

The FlyAir Green system is made up of two bodies connected through a steel shroud: a drawer that contains the management electronics and a group of components by including the laser source and the scanning unit. This shroud is essential for the protection of the cables and prevents damage caused by bending or accidental pressure or crushing to the shroud.

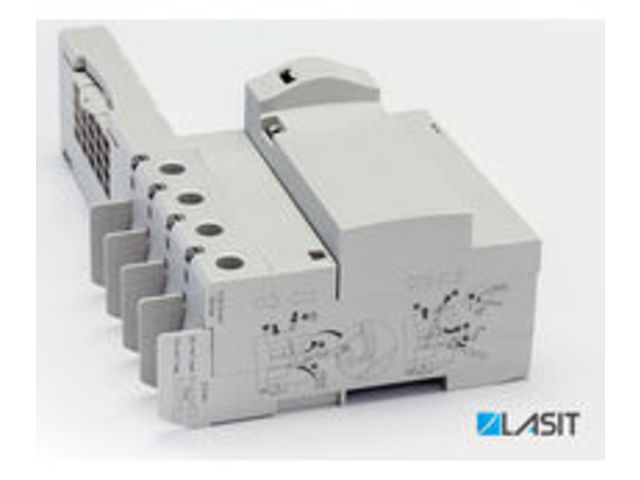

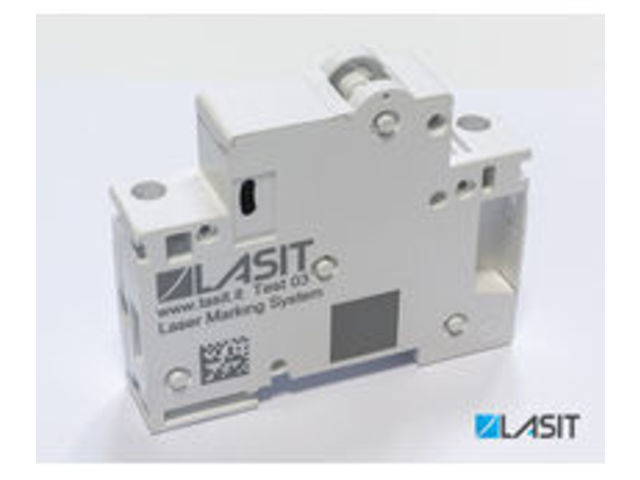

The system is air cooled to ensure a constant temperature – the diode is mounted on a Peltier cell. This type of laser is ideal for all plastics marking; transparent parts in general, and for laser processing in thesolar/photovoltaic industry.

Technical features

Power: 6W Technology: Laser Nd: YV04 diode-pumped Wavelength: 532 nm Beam quality: M² < 2 (measured and real) Pulse frequency: from 10 KHz to 100 KHz Electrical connection: 110-230 Vac (L+N+Gnd) 50-60Hz Maximum absorption: 250W Cooling: Air Interconnection cable: Stainless steel armoured ø25mm length 3 mt Operating Temperature: 15°C – 35°C without condensation
