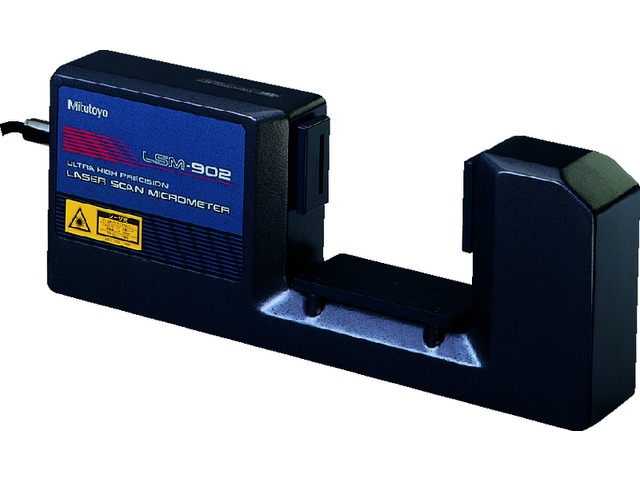

Laser Scan Micrometer LSM-902 MITUTOYO

Laser Scan Micrometer LSM-902

Micrometers

Vote

Ask for a quote Receive Documentation Contact the supplier

The LSM-902/6900 is a high accuracy, non-contact measuring system that uses a high speed scanning laser beam to accurately measure workpieces. It is ideal for measuring items that are difficult or impossible to measure with conventional instruments, such as elastic parts or soft parts that might deform under pressure.
The LSM-902/6900 offers you the following benefits:

  • Suitable for pin and plug gauge measurements.
  • It has a wide measuring range of 0.1 mm to 25 mm.
  • Provides ultra-high accuracy with a linearity of ±0.5 μm over the entire measuring range and ±(0.3+0.1∆D) μm in the narrow range.
  • Ultra-high repeatability of ±0.05 μm.

Item number: 544-495D Range:0.1 - 25 mm Resolution (selectable):0,01-10 μm Repeatability (±2ơ):±0,05 μm Measuring region :3 x 25 mm Laser wavelength:650 nm, Visible Scanning rate:800 scans/s Scanning speed:56m/s Main display:16-digit fluorescent tube Inch-Metric:Metric
