LB Series | Load Measuring Pins

Shear force sensor

Vote

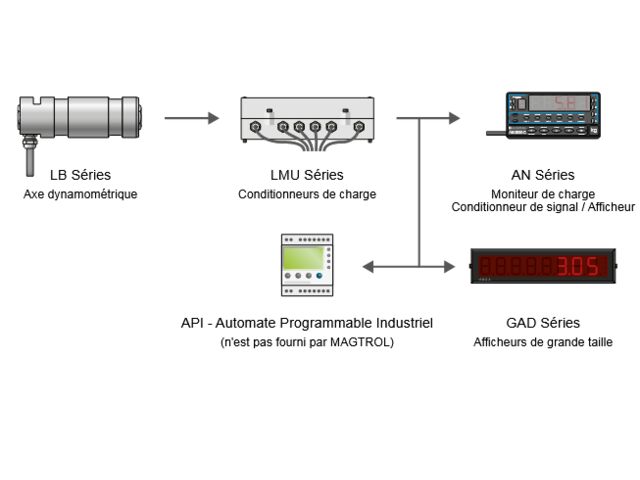

“ LB Series Load Measuring Pins can be used alone or as part of a complete measurement system. Magtrol offers a wide range of Load-Force-Weight Transducers in various executions and accuracy classes and our Load Monitoring Units (LMUs) constitute an ideal safe measurement system which continuously checks for overloads and short circuits. ”

Ask for a quote

Presentation

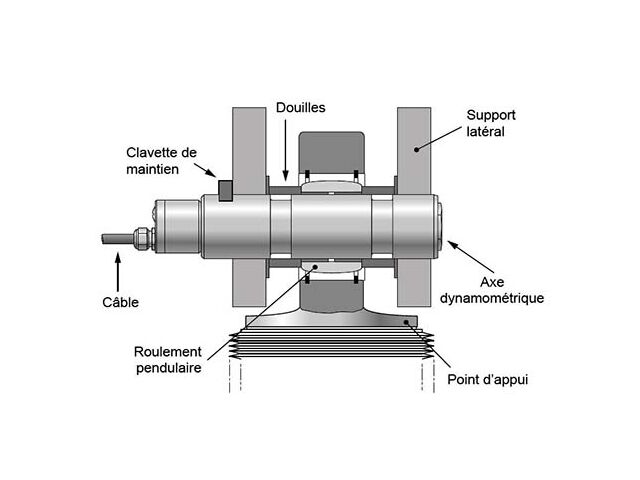

MAGTROL Load Measuring Pins are used to measure load and force and provide overload protection. The pins are mounted into machines in place of normal shafts and fitted with strain gauges, allowing them to produce a signal proportional to the measured load. Manufactured in Switzerland, Magtrol’s LB 2XX Series Load Pins are rugged
with high resistance stainless steel and tight construction, designed specifically for use in harsh industrial environments.
Available in several standard ranges from 2.5 kN to 1250 kN, these highly ergonomic pins can be used for either new or
refitted installations and are adaptable to various conditions.

Technical features

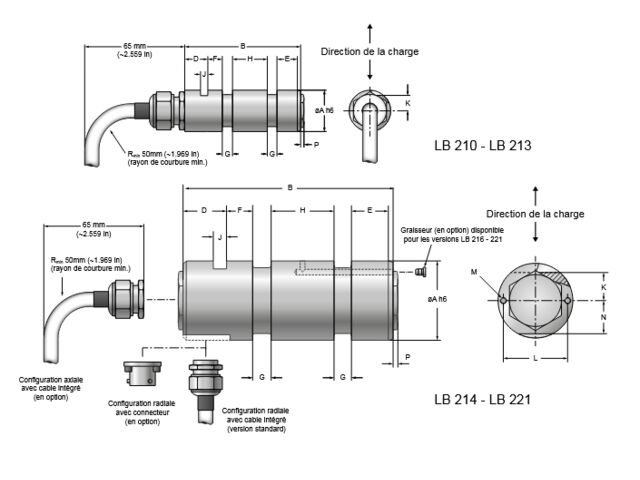

For overload detection and load measurement from 2.5 kN to 1 250 kN (0.28 tf to 140.5 tf). Admissible Overload: 150 % of the nominal load. Overload at Rupture: up to 500 % of the nominal load. Insensitive to external mechanical and chemical effects. Ideal for use in hostile environments Temperature-compensated transducers with strain gauges in full-bridge configuration. On request, available with double bridge redundant Simple installation for cost-saving solutions to measurement problems Many options may be added to the lower-cost standard load pin for greater flexibility Can be designed with special dimensions for adaptation to various construction conditions High reliability for strict safety requirements

Download the complete technical features

Usage scope

Load measurement Overload protection Cranes, hoisting gear, elevators and winches measure forces in harsh, tropical, offshore, marine and harbor environments
