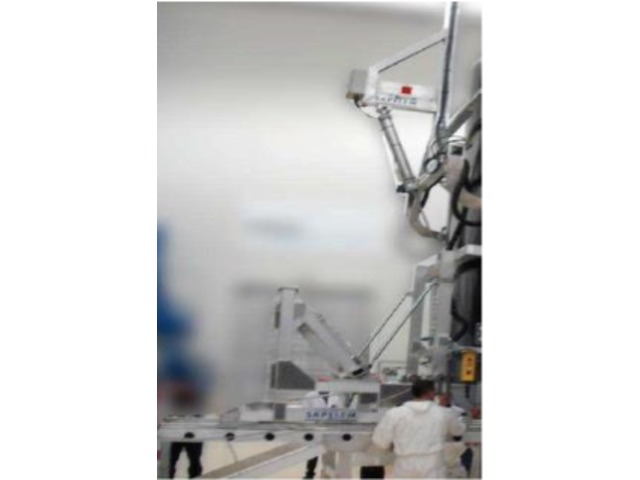

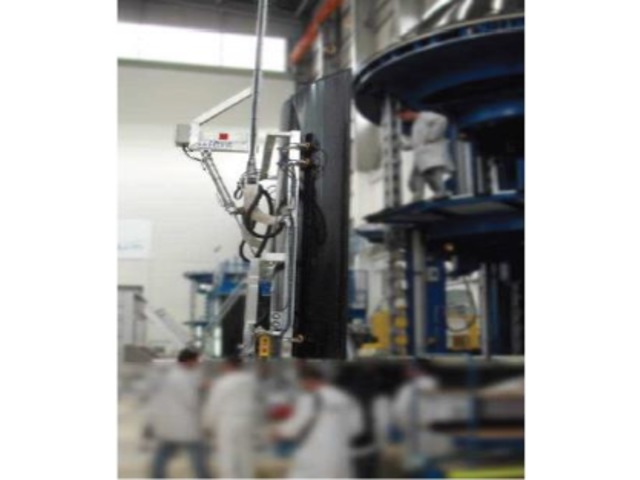

Made to measure, the lifting beams with suction cups for convex panels is designed for the prehension of convex panels of headgear of satellite while turning them vertically to an angle of 90 °.
Thanks to an overhead crane, a set panel is moved with big flexibility and put down on a specific wagon. With a capacity of 65 kg lifting, this lifting beams allows the manipulation of panels of length between 3.12-4.92 m and an outside beam of 2.28m - ¼ of circle.
With a swivelling structure equipped with 12 fixed suction cups, this lifting beams has a jack assuring the pivoting of the panel, the box clipped button of order and a radio order, a table of positioning of the lifting beams and the wagon of storage.
