Mechanical Booster Pumps Stokes 6 EDWARDS SAS

Mechanical Booster Pumps Stokes 6

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

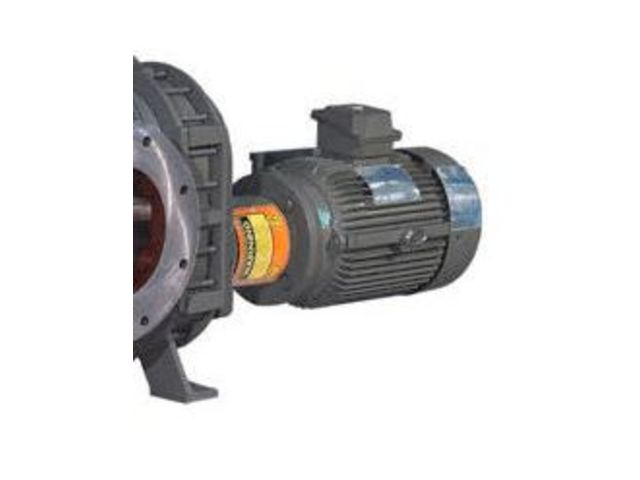

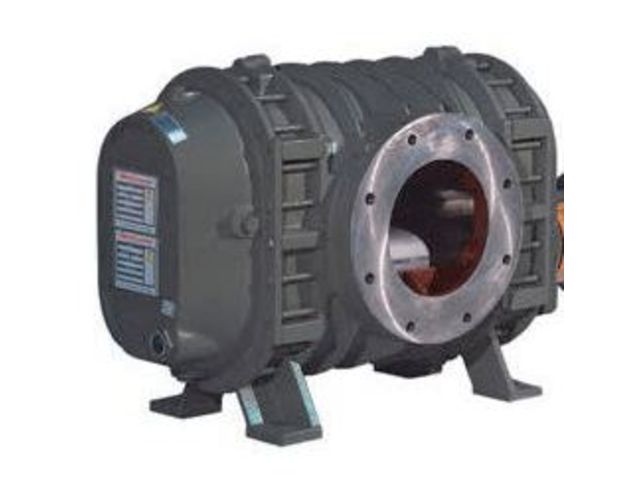

Overview Stokes 6" series mechanical boosters are designed to be used in conjunction with rotary-piston, dry vacuum, rotary vane and liquid ring pumps to increase pumping speed at working pressures and shorten pump down time significantly. The Stokes 6" series can be mounted separately or on the inlet of the backing pump to create a compact integrated package.

Featuring an extra large diameter shaft, the Stokes 6” series has the capability for use with higher powered motors in addition to ensuring a uniquely rugged and durable mechanical booster. This allows the pumps to operate at their full displacement from atmospheric pressure with an appropriately sized backing pump.

The Stokes 6" series must be backed by a primary vacuum pump designed to discharge to atmospheric pressure. Examples of suitable backing pumps are listed below:
  • GV Drystar or Chemical Drystar dry pumps
  • Two stage LR series liquid ring pumps
  • RV, EM or EVC oil sealed pumps
  • Microvac series piston pumps

Ref. 900607MH05 V belt (2750 rpm) : 1589m3h-1 / 935ft3min-1 Direct drive (1800 rpm) : 1040m3h-1 / 612ft3min-1 Direct drive (3000 rpm) : 1733m3h-1 / 1020ft3min-1 Direct drive (3600 rpm) : 2080m3h-1 / 1224ft3min-1 Inlet/outlet flanges : 6” ASA/ANSI Motor power US TEFC : 5 / 20hp Motor power EU/Asia : 7.5kW Max temp rise : 135°C / 275°F Max discharge temp : 191°C / 375°F
