ModuLine Temperatur Sensor | iTHERM TM111

Temperature sensors

Vote

“ - User-friendly and reliable from product selection to maintenance - iTHERM inserts: globally unique, automated production. Full traceability and consistently high product quality for reliable measured values - iTHERM QuickSens: fastest response times 1.5 s for optimum process control - iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety - iTHERM TA30x: variety of terminal heads for easier handling and lower installation and maintenance costs - International certification: explosion protection according to ATEX, IECEx, CSA C US and NEPSI ”

Ask for a quote

Presentation

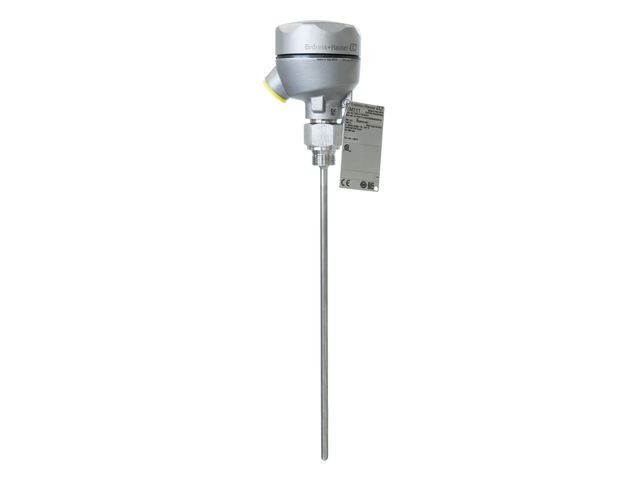

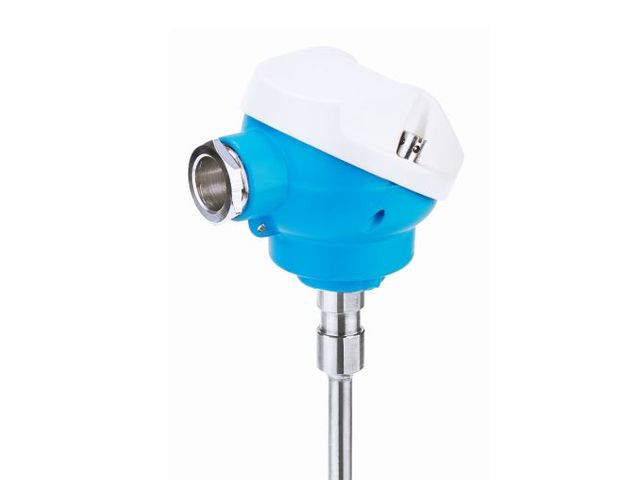

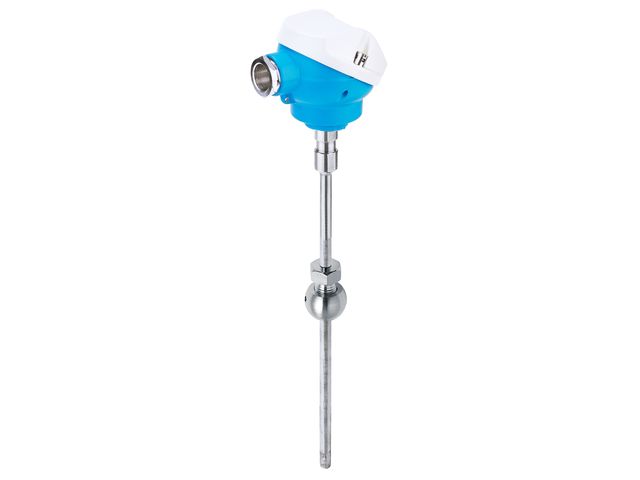

Trend-setting, modular thermometer for direct installation into a variety of industrial applications

Easy-to-use metric version with outstanding RTD or TC sensor technology. An optional head transmitter, with all common communication protocols - Bluetooth® technology inclusive, makes the device ready to use with enhanced measurement accuracy and reliability. A variety of process connections, dimensions and materials offer flexible application possibilities. It features vibration-resistant and fast-response sensor technology (iTHERM StrongSens and QuickSens) as well as hazardous area approvals.

Technical features

Measuring principle : Resistance Temperature Detector Thermowell / protection tube : without, direct process contact Insert / probe : mineral insulated (MI), flexible Outer diameter protection tube / Insert : Insert: 3,0 mm / 6,0 mm Max. immersion length on request : up to 4.500,0 mm (177'') Integration head transmitter : yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) Surface roughness : Ra < 1.6 μm (63.00 μin) Material protection tube/ thermowell : Insert Material : 316L (1.4404) / Alloy 600 (2.4816) / Pyrosil

Download the complete technical features

Usage scope

Universal range of application Measuring range : –200 to +1100 °C (–328 to +2012 °F) Pressure range up to 75 bar (1088 psi) Degree of protection : up to IP 68 Vibration-resistant sensor elements up to 60g
