Servomotor- and feedback cables in acc. to LENZE® standard for static use or dynamic power chain application, UL/CSA AWM certified
-
Servo drives
-
For static or highly flexible use
-
EMC-compliant
Benefits
-
Motor cables with low-capacitance
-
Multi-standard certification reduces part varieties and saves costs
Application range
-
Connecting cable between servo controller and encoder/resolver
-
Connecting cable between servo controller and motor
-
Plant engineering
-
Assembly lines, production lines, in all kinds of machines
Norm references / Approvals
-
Resolver and encoder cable:
UL AWM Style 2464 for fixed installation versions,
UL AWM Style 21165 for highly flexible applications,
CSA AWM I/II A/B
-
Motor cable:
UL AWM Style 2570 for fixed installation version,
UL AWM Style 20940 for high flexibility use,
CSA AWM I/II A/B
-
UL File No. E63634
-
For use in power chains: Please comply with assembly guideline Appendix T3
Product Make-up
-
Design according to LENZE® standard:
-
Designs for fixed installation:
PVC outer sheath, PP core insulation.
-
Designs for highly flexible use:
PUR outer sheath, TPE core insulation
-
Refer to data sheet for more details
-

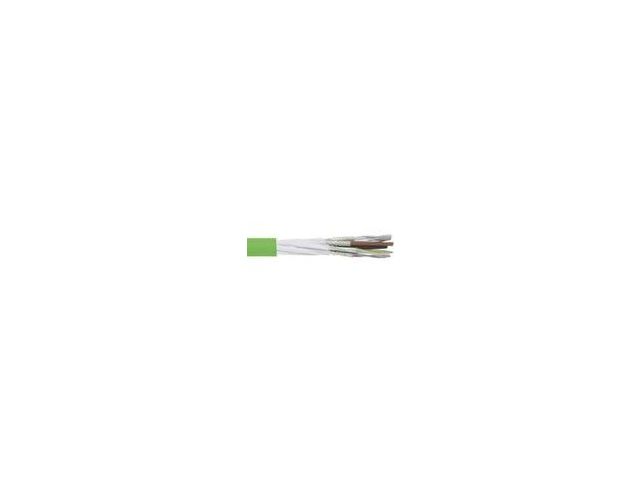

Signal cables: green (RAL 6018)
-

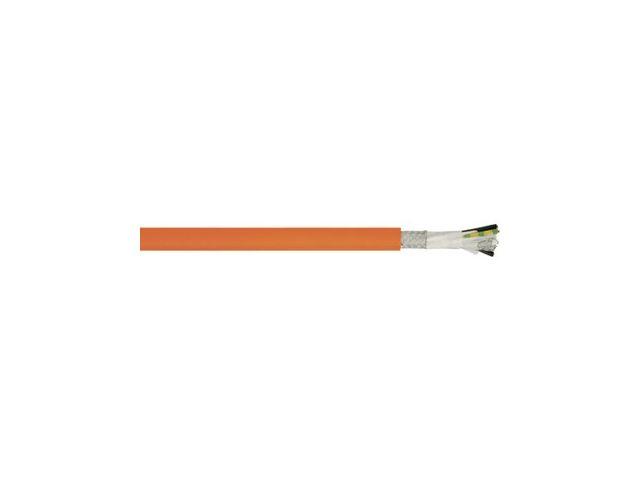

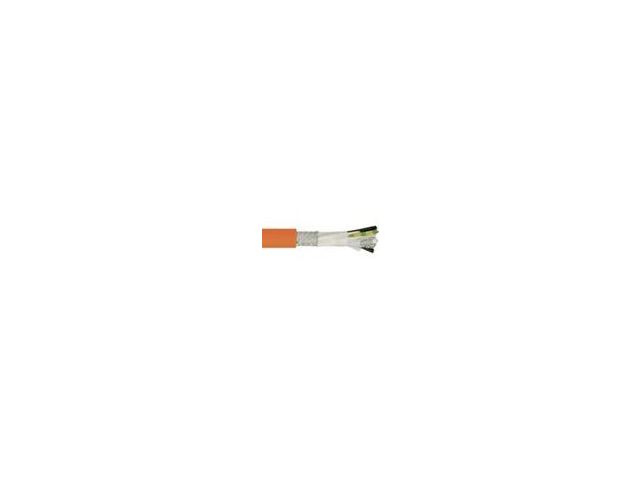

Servo cable: orange (RAL 2003)
