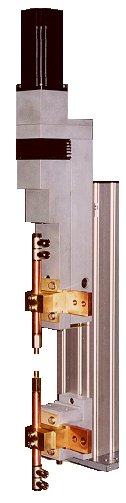

NUMERICALLY DRIVEN WELDING HEAD TYPE TN TECHNAX

NUMERICALLY DRIVEN WELDING HEAD TYPE TN

Vote

Ask for a quote

Presentation

Welding force supplied by a servomotor type brushless. Torque monitoring for a constant force during the welding process

A Piezo sensor for force checking during the welding cycle can be set up

Welding current can be switched off once a defined position has been reached

Direct driving through ball screw.

Integrated position measuring device with adjustment of the approach and squeeze speeds

Welding unit with guiding through ball block

Electrode holders adjustable in X - Z axes

Electrode holder set up onto a moving and current conductive block. Easy adjustment of he electrodes outside the machine

Components quickly interchangeable, without water stop

Indexing slot for tools

Components to be easily integrated onto aluminium standard profiles

Adaptation for lower electrode moving possible

Head to be mounted into assembling machines
