Presentation

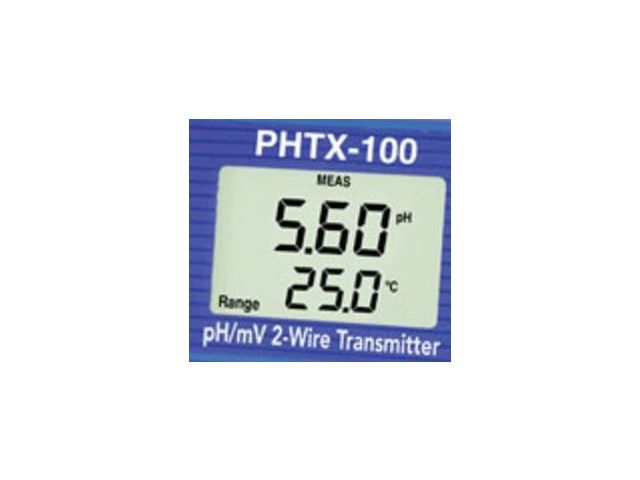

The PHTX-100 pH/mV transmitter is a loop-powered 4 to 20 mA transmitter with a wide range of useful features and programmable options.

Five buffer choices are available in two-point calibration mode. The 4 to 20 mA output is saleable in pH or mV units and has 500V input to output isolation.

Temperature is always displayed and is selectable in °C or °F. All stored parameters and calibration data are retained in the non-volatile memory during transmitter power down or power loss.

A useful probe clean reminder icon flashes when it is time to clean the probe. Probe cleaning interval is user programmable from 1 to 250 days.

The PHTX-100 can be used for wall mounting, panel mounting, pipe mounting and DIN-rail mounting. Cable glands for inlet/outlet to box are included as well as all mounting hardware. The case meets IP65 (NEMA 4X) ratings for ingress protection.

Technical features

Measuring Range (pH) : 0.00 to 14.00 pH, 0.01 pH resolution, ±0.01 accuracy Measuring Range : (ORP/mV) -1999 to 1999 mV, 1 mV resolution, ±2 mV accuracy Temperature Range : -20 to 110°C (-4 to 230°F) 0.1°C/°F resolution Current Output Range : 2.00 to 24 mA, 0.01 mA resolution, ±0.005 mA accuracy, 500V input/output isolation Enclosure : NEMA 4X (IP65), ABS case with push-button control pad Dimensions : 99 H x 99 W x 75 mm D Weight : 0.45 kg approx. Mounting Options : Wall, panel, DIN rail and pipe Cable Entries : 2, cable glands included Ambient Humidity : 0 to 95%, non-condensing
