Plant-4D PIPE

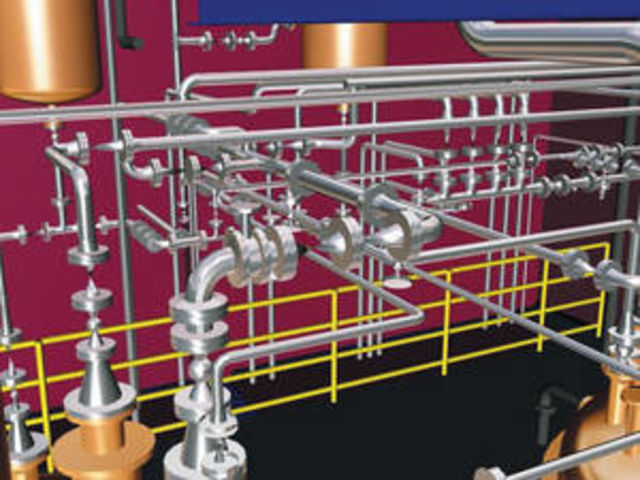

The Plant-4D Pipe module is a powerful tool, which enables the user to create a fully (populated) 3D design model of a plant. The Plant-4D kernel ensures a tight integration between the 2D schematic drawings and the 3D physical model. The Plant-4D Pipe module supplies full functionality and catalogues based on international standards.

Technology
Plant-4D Pipe is platform independent, running on AutoCAD and MicroStation regardless of the version. Both CAD-systems can even be used fully flexible in the same project. Plant-4D communicates with multiple database engines like: MS-Access, SQL Server and Oracle. The data is stored in a neutral format and can be represented in any way required. The Plant-4D Pipe product is integrated with the 4D-Explorer front-end which provides the user with full reporting, viewing and issue management capabilities
