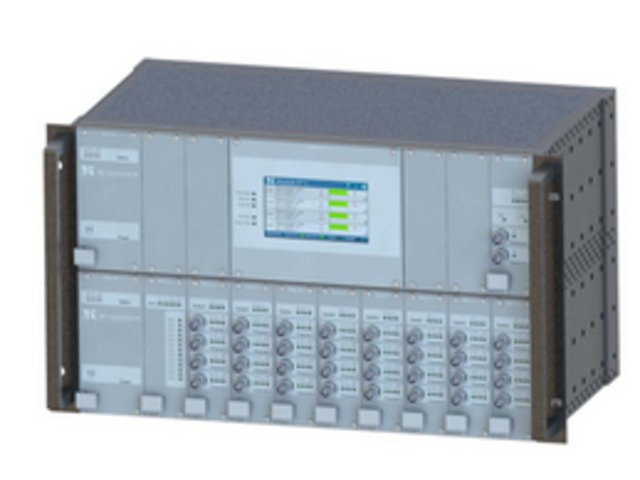

The PMS-300 is a state-of-the-art rack based continuous monitoring system that is ideal for virtually all critical machinery protection applications. It offers both superior configuration flexibility and maximum reliability.
Capable of supporting up to 64 channels per rack, the PMS-300 provides the industry's highest channel density in a standard 19" rack. It uses standard "ladder logic" to make configuration easy.
PMS-300 Features include:

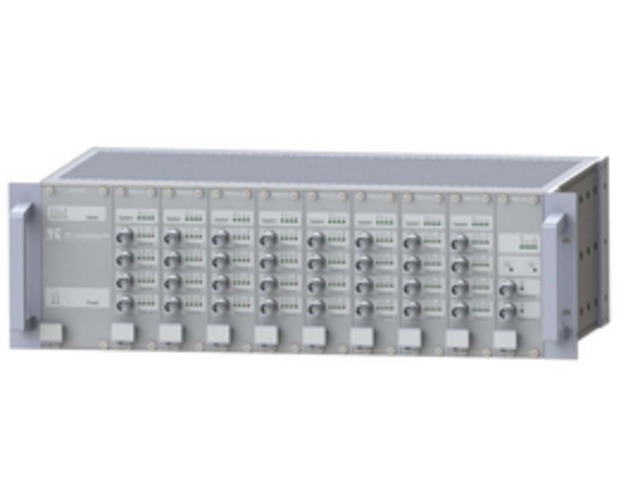

• 3HU rack (up to 24 channels) and 6HU rack (up to 64 channels).
• Condition monitoring software ORCA CMS-500.
• Modbus RTU and ethernet to ORCA CMS-500
• 1 module for proximity probes and accelerometers.
• Common dual channel reference signals
• Communications modules
• Up to 64 channels per rack
• Optional local panel display
• Integrated condition monitoring functions (1X,2X, nX, Smax...).
• Input : Proximity probes, accelerometers, process, T°...
• Configuration software with commissioning mode and live mode.
Type of machinery : Rotating machine of high criticality: Generator, compressor, turbine…
