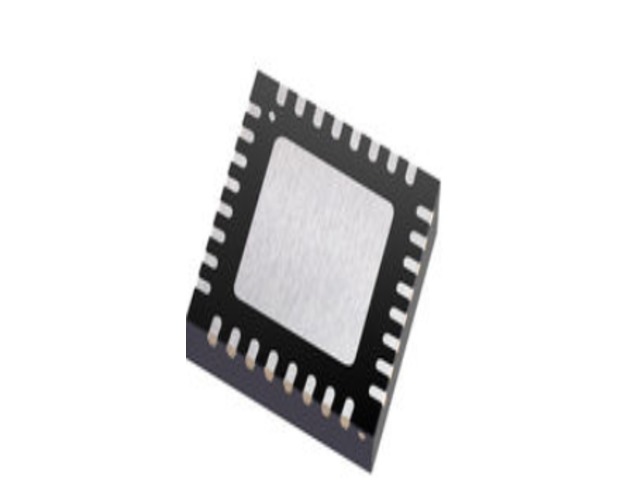

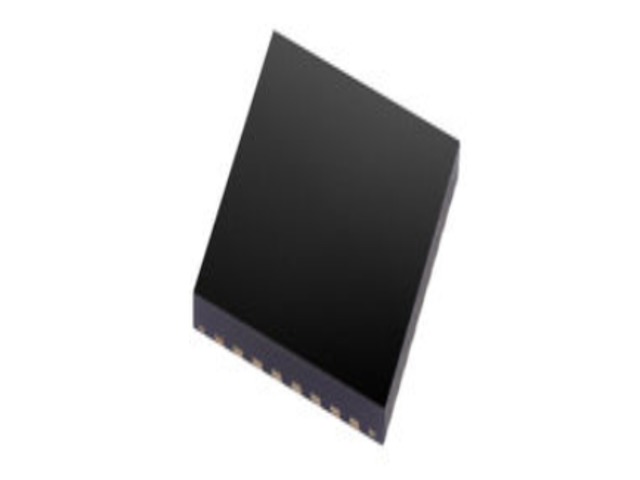

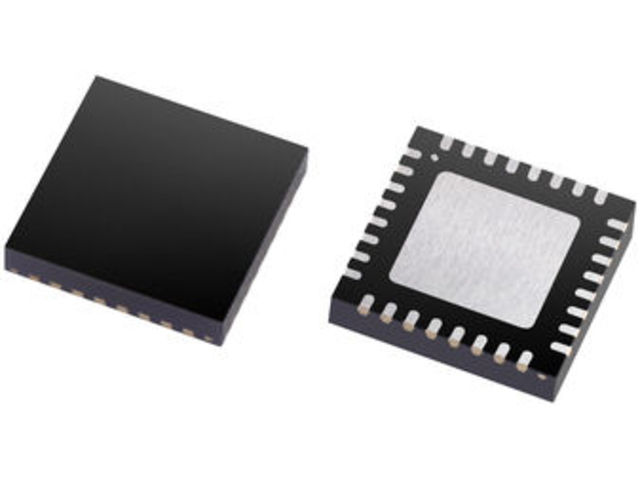

Programmable six channel low−side MOSFET pre−driver : NCV7519 EBV ELEKTRONIK

Programmable six channel low−side MOSFET pre−driver : NCV7519

Semi conductors and Modules for power factor correction

Vote

Ask for a quote Receive Documentation Contact the supplier

The product is controllable by a combination of serial SPI and parallel inputs. The device offers 3.3 V/5 V compatible inputs and the serial output driver can be powered from either 3.3 V or 5 V. An internal power−on reset provides controlled power up. A reset input allows external re−initialization and an enable input allows all outputs and diagnostics to be simultaneously disabled.

Each channel independently monitors its external MOSFET’s drain voltage for fault conditions. Shorted load fault detection thresholds are fully programmable using an externally programmed reference voltage and a combination of discrete internal ratio values. The ratio values are SPI selectable and allow different detection thresholds for each channel.

Fault recovery operation for each channel is programmable and may be selected for latch−off or automatic retry. Status information for each channel is 3−bit encoded by fault type and is available through SPI communication. The FLEXMOS family of products offers application scalability through choice of external MOSFETs.

16 bit SPI with parity and frame error detection 3.3 V/5 V compatible parallel and serial control inputs 3.3 V/5 V compatible serial output driver Reset and enable inputs Open−drain fault flag Priority encoded diagnostics with latched unique fault type data Shorted load, short to GND Open load On and off state pulsed mode diagnostics Ratiometric diagnostic references and currents
