Features :

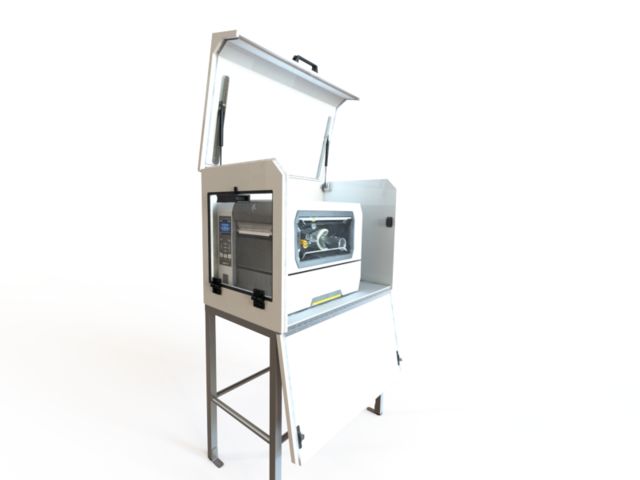

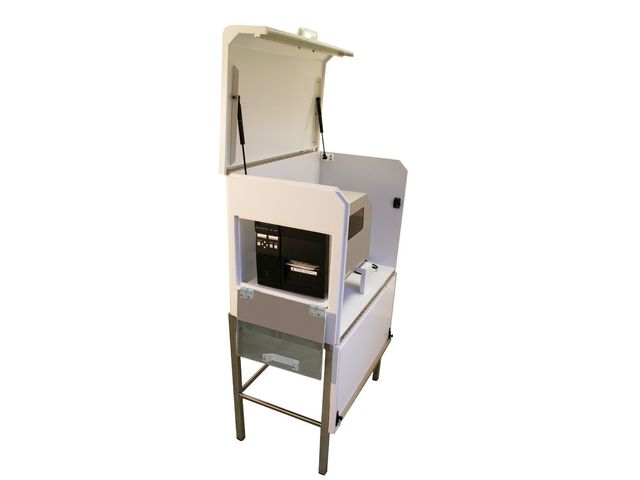

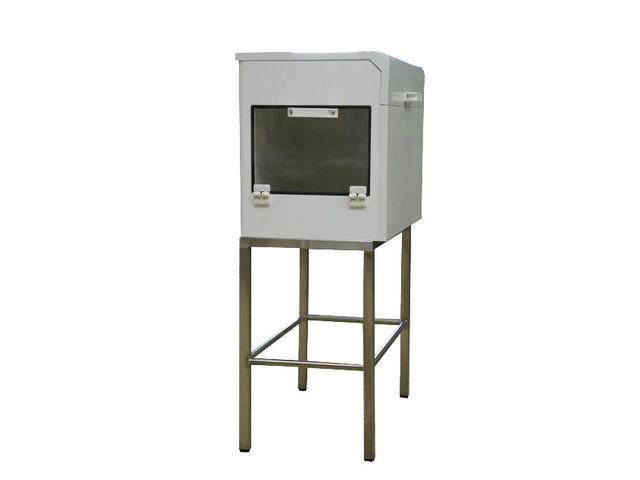

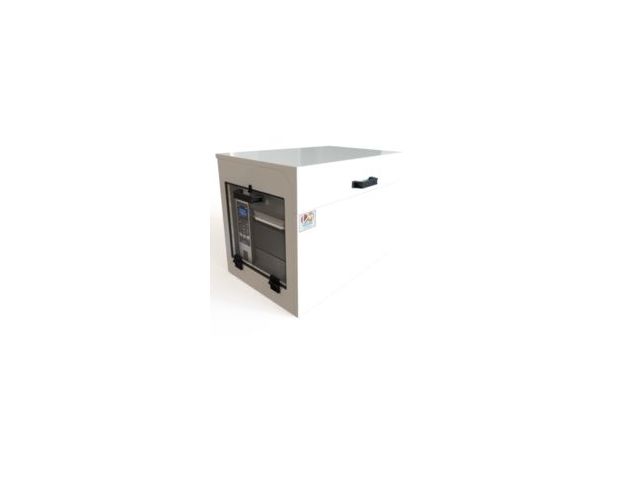

Printer protection box made from a single thermoplastic thermoformed element allowing to obtain in the same structure the front, the side and the rear face;
Walls made of 19 mm thick composite material, dyed in the mass to guarantee the protection and the watertightness of the cell;
Smooth cell surface for easy cleaning and to avoid waste accumulation;
Possibility to add two composite supports fixed to the floor to raise the printer;
Connectivity: a system of 2 standard cable glands to be fitted from 7 to 13 mm for cable routing.
Handling :
Side access to the thermal printer ;
Opening and closing of the cell :
Hinged side panel, mounted on piano hinge and closed by two clamp latches ;
Thermoformed lid with PVC reinforcement to ensure panel strength:
The cover is closed on the flap by fitting against the sealing strips;
Mounted on a piano hinge and opening assisted by two pneumatic cylinders;
Front panel:
Access to the printer controls and labels on the front panel via a 6 mm thick PMMA (transparent thermoplastic) flap.
Its advantages :
Impact resistance
Physical and thermal protection
Suitable for large format thermal printers
Available in the version for the protection of thermal printers in controlled cold and extreme cold.
