Radial Drill Press - R 32 Basic

Radial drill

Vote

“ Rigid Radial Drill Press with an unbeatable price/performance ratio ”

Ask for a quote

Presentation

• For drilling, reaming and tapping
• Machine frame made of high-quality fine-grain cast-iron with heavy ribbing to ensure maximum reduction of vibrations
• Precision-ground gears for quiet operation

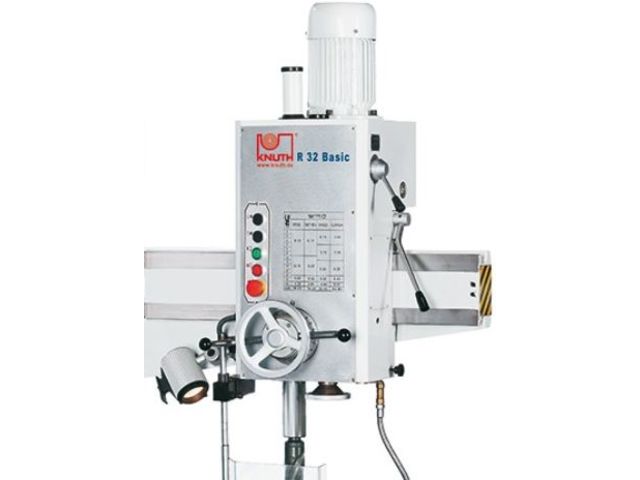

• Practical layout of electrical and mechanical controls at the headstock for easy operation

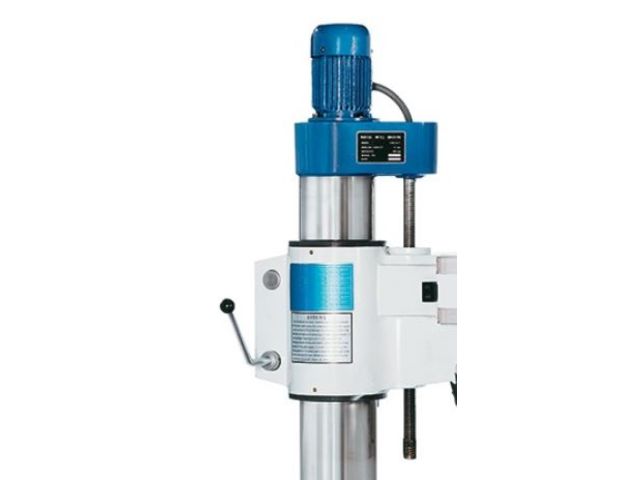

• Motorized arm height adjustment
• The spindle is made of high-quality hardened steel of consistent accuracy

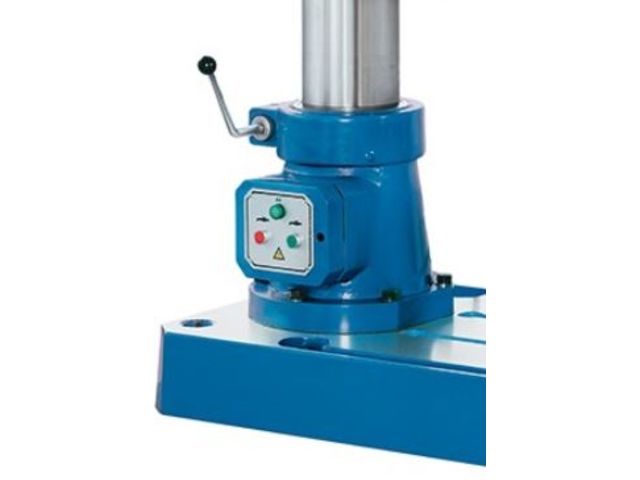

• Mechanical clamping for head, column and arm

Standard equipment : coolant system, cube table, halogen lights

Technical features

Drilling capacity : 32 mm Column diameter : 200 mm Throat : 320 - 820 mm Spindle nose-to-table surface distance : 320 - 860 mm Cube table dimensions : 400x400x350 mm Machine table dimensions : 1.370x700x160 mm Quill stroke : 240 mm Spindle mount : MK 4 Speed range : (6) 75 - 1.220 rpm Feeds : (3) 0,1 - 0,25 mm/R
