EDWARDS SAS

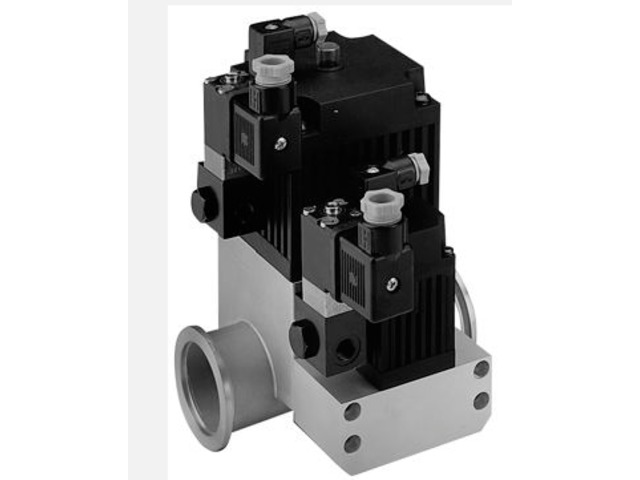

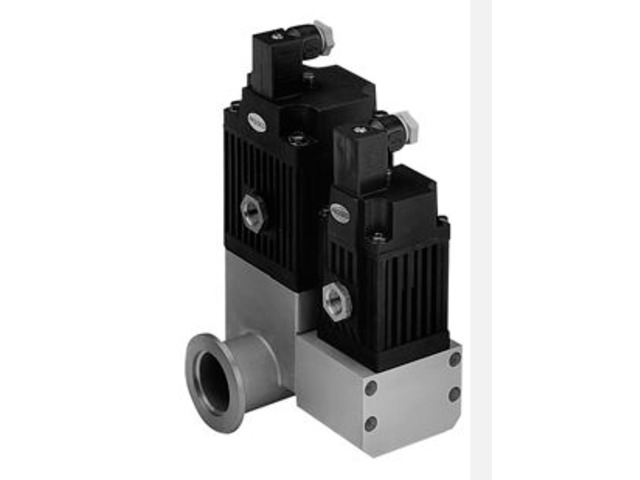

Soft-Start Valves SIPV25P, pneumatic, bellows sealed, aluminium body EDWARDS SAS

Soft-Start Valves SIPV25P, pneumatic, bellows sealed, aluminium body

Other valves

Vote

Ask for a quote Receive Documentation Contact the supplier

Soft-start, pneumatically operated, in-line valves with interchangeable orifices for the controlled pumpdown of processes where turbulent flow can cause problems with particulate contamination.

Slave and master valve combination allows slow initial pumping to minimise disturbance. Both slave and master valves require separate pneumatic connections.

Valve actuation type : Single acting, pneumatically opened, spring closed Pressure range : 1 x 10-9 to 2100 mbar, 8 x 10-10 to 1575 Torr Pneumatic connector : Rp 1/8 ( 1/8 inch BSP) Recommended pneumatic operating pressure : 2.8 to 4.2 bar / 41 to 61 psi Electrical indicator : Single microswitch Microswitch electrical rating : 24 V, 1.5 A a.c. or d.c. Max cycle frequency : 900 h-1 Bellows reliability, MTTF : 5000000 cycles Ambient operating temperature : 5 - 100 °C Maximum baking temperature : 100 °C
Download the complete technical features
