Surftest SV-3000 CNC Ultra-high Precision Surface Roughness Tester MITUTOYO

Surftest SV-3000 CNC Ultra-high Precision Surface Roughness Tester

Surface roughness measurement

Vote

Ask for a quote Receive Documentation Contact the supplier

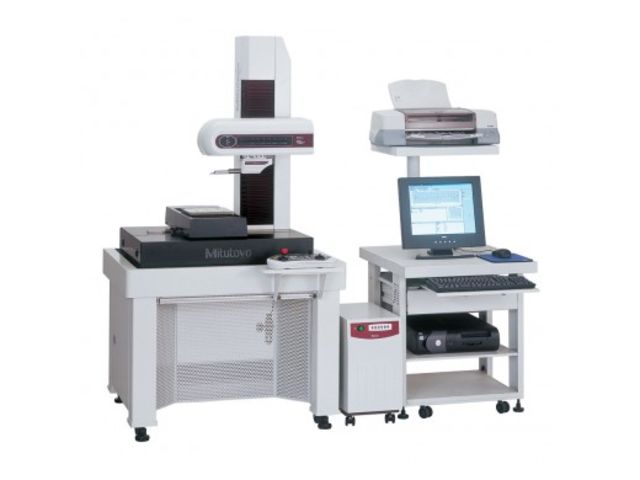

A Mitutoyo highly accurate instrument that allows CNC measurement of surface roughness and contour. Each axis has a maximum drive speed of 200mm/s, permitting high-speed positioning for increased throughput of multiple-profile/multiple-workpiece measurement tasks. Models equipped with the a axis can perform continuous measurement over horizontal and inclined surfaces by power-tilting the drive unit.

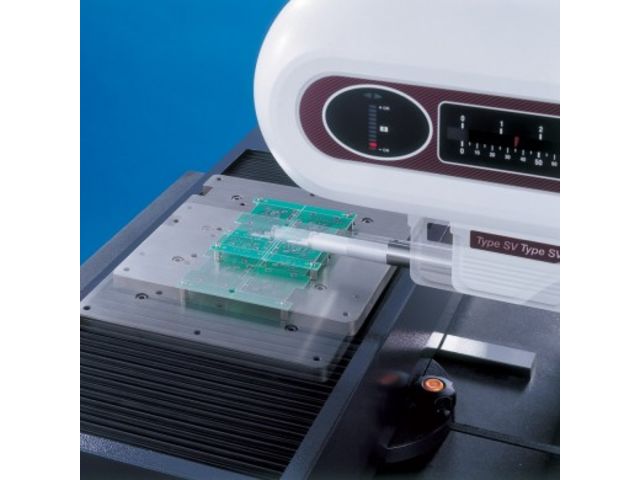

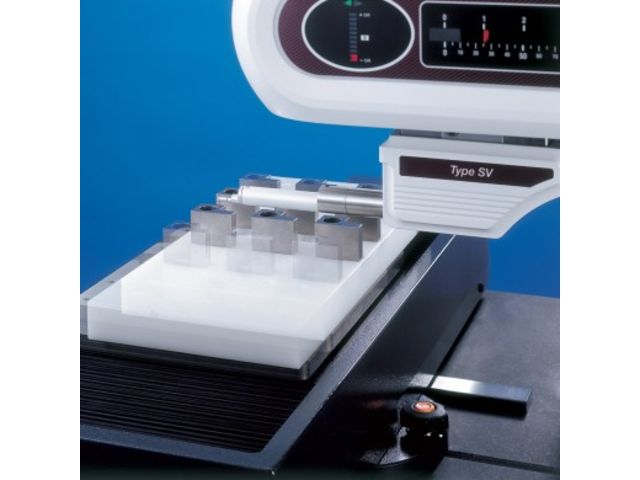

Models equipped with the Y-axis table allow expansion of the measuring range (for multiple workpieces, etc.) through translation in the Y-axis. With optional rotary tables q1 and q2, designed for use with the CNC models, the CNC measurement application range is expanded significantly.

Measurement of inclined surfaces is possible through 2-axis simultaneous control in the X- and Y-directions. The detector unit incorporates an anti-collision safety device that stops the detector unit drive automatically if its main body collides with a workpiece or jig. An easy-to-operate remote box allows the user to make any movement by joystick control.

Y-axis table unit: Range:800 µm; 80 µm; 8 µm (up to 2,4 mm with an optional stylus) Traverse:X = 200 mmY = 200mm Measuring speed:0.02 - 2 mm/s Standard:EN ISO, VDA, JIS, ANSI and customize setting Drive speed:200 mm/s (max. CNC)0-60 mm/s (joystick) Traverse straightness:0.5 µm / 220 mm Inclining range:-45° (CCW) to +10° (CW) Profiles:Primary Profile (P), Roughness Profile (R), Waviness (W), MOTIF (P, R, W) and more Measuring force:0,75 mN (178-396-2) 4 mN (178-397-2)
