Switch : HMC245A

Semi conductors and Modules for power factor correction

Vote

Ask for a quote

Presentation

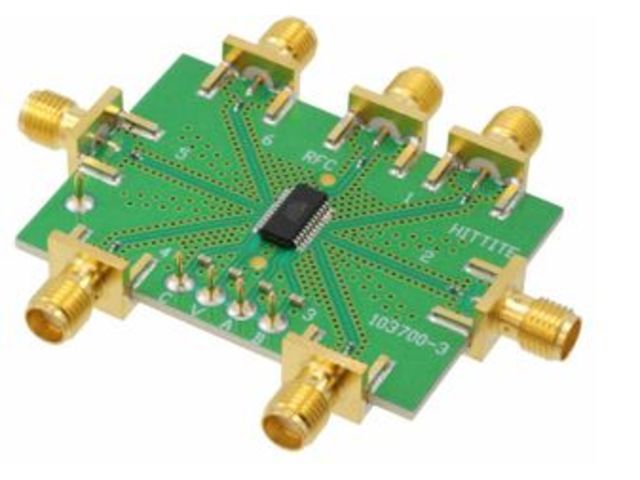

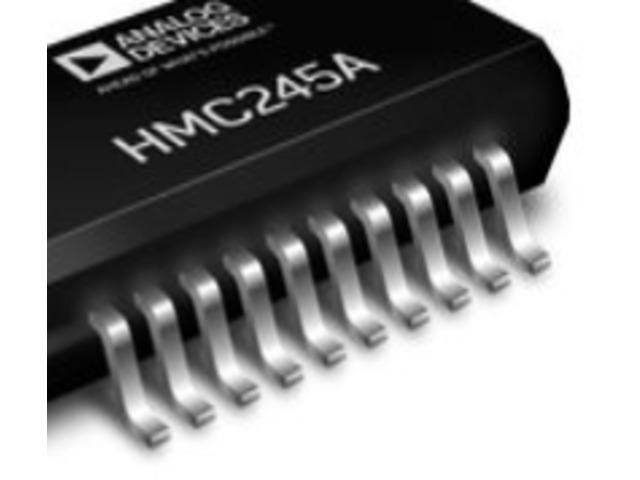

The HMC245AQS16 & HMC245AQS16E are low cost non-reflective SP3T switches in 16-lead QSOP surface mount packages.

Covering DC to 3.5 GHz, the switch offers 30 to 40 dB isolation and a low insertion loss of 0.7 dB.

A 2:3 TTL/CMOS compatible decoder is integrated on the switch requiring only 2 control lines and a single +5V bias to select each path, replacing 6 control lines normally required by GaAs SP3T switches.

Technical features

Low Insertion Loss : 0.7 dB @ 2.0 GHz Non-Reflective Design Integrated 2:3 TTL Decoder “All Off” Isolation State Single Positive Suppy: Vdd = +5V
