Thermal mass flow meter System-c Instrumentation

Thermal mass flow meter

Thermal flow meter

Vote

“ Winner of Flow Control's 2013 Innovation Award! Winner of Processing’s Breakthrough Products of the Year Award! - Accurate and repeatable - Reduced maintenance - No moving parts - Free software - Sensibility at low flow rates ”
Ask for a quote Receive Documentation Contact the supplier

Thermal mass flow meter FT3 from FOX THERMAL INSTRUMENTS

The Fox Model FT3, a multiple award-winning thermal gas mass flow meter manufactured in the United States by Fox Thermal Instruments.

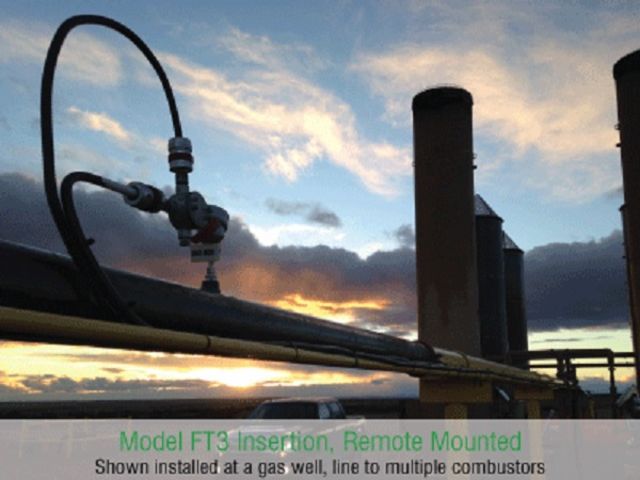

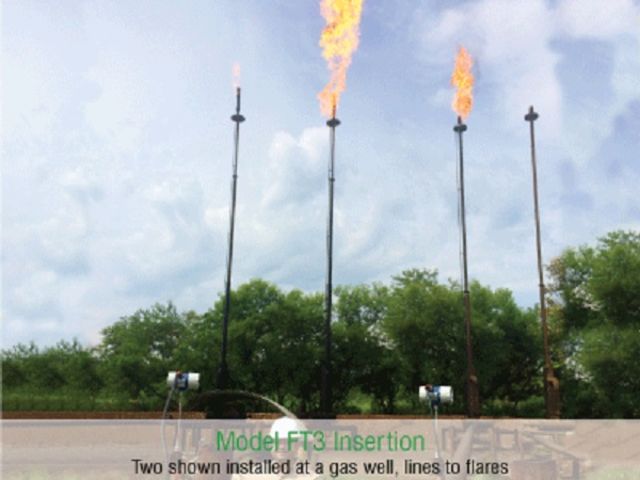

The Model FT3 was designed with our oil and gas customers in mind. This meter is Quad O (OOOO) compliant and is perfect for use in flare gas applications along with other fuel gas measurement.

The Model FT3 measures gas flow rate in standard units (SCFM, NM³/hr, LBS/HR, KG/HR & many more) without the need for temperature and pressure compensation.

FT3 View™ - a free software tool –- allows the user to connect to and configure the FT3 using USB to a PC or laptop.

Common Features for Fox Model FT3 Flow Meter:
  • Measures process gas flow rate/total and temperature
  • A USB connection is standard (free FT3 View™ Software); Optional HART and RS485 Modbus communication protocols
  • Optional on-board display and configuration panel
  • Equipped with the Power Pro™ thermal mass flow sensor
  • One discrete output is programmable for either pulse (for totalizing flows) or alarms
  • One discrete input to reset total or select a different calibration on 2 gas curves
  • 4 to 20 mA output proportional to mass flow rate
  • Click the Approvals tab for Model FT3 Agency Approvals.
  • Calibration Validation with the CAL-V™ and Zero CAL-CHECK® features.
  • NIST-traceable calibration
  • Wide measurement range
  • 1% R + 0.2% FS flow accuracy
  • 24 VDC or optional 100 to 240VAC in local or remote enclosures
Optional items available for the Model FT3 Flow Meter:

Talk with our application specialist or a rep near you for sizing and materials requirements

  • Insertion probe or inline models
  • AC or DC power options
  • Remote models available with remote J-box
  • Cable for remote
  • Remote Mounting Kit for remote enclosures
  • Retractors
  • Extra Instruction Manual
  • Stainless Steel Tags
  • Certificate of Conformance
  • Certificate of Origin
  • USB Cable
  • Teflon Ferrule Kit
  • Flow meter cleaned and bagged for Oxygen service
  • Remote Mounting Kit for remote enclosures

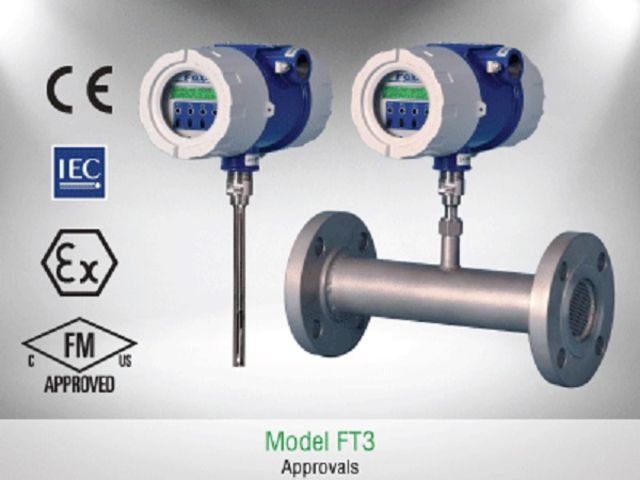

FT3 Approvals

CE: Approved

  • EMC Directive; 2004/108/EC
  • Emissions and Immunity Testing: EN61326-1:2008
  • Pressure Equipment Directive: 97/23/EC
  • Weld Testing: EN ISO 15614-1 and EN ISO 9606-1, ASME B31.3

FM and FMc: Approved

  • Class I, Div. 1, Gps B, C, D; Class II, Div. 1, Gps E, F, G; Class III, Div. 1;
  • T3C, Ta = -40°C to 70°C; Class I, Zone 1, AEx/Ex d IIB+H2 (T6, T4, or T1*);
  • Ta = -20°C to 70°C; Type 4X, IP67

ATEX (FM12ATEX0034X): Approved

  • II 2 G Ex d IIB+H2 (T6, T4, or T1*) Gb Ta = -20°C to 70°C; IP67
  • II 2 D Ex tb IIIC (T85°C, T135°C, or T450°C*) Db Ta = -20°C to 70°C; IP67

IECEx (IECEx FMG 12.0010X): Approved

  • Ex d IIB+H2 (T6, T4, or T1*) Gb Ta = -20°C to 70°C; IP67
  • Ex tb IIIC (T85°C or T135°C*) Db Ta = -20°C to 70°C; IP67**

ATEX and IECEx Standards:

  • EN 60079-0: 2009 IEC 60079-0: 2011
  • EN 60079-1: 2007 IEC 60079-1: 2007
  • EN 60079-31: 2009 IEC 60079-31: 2008
  • EN 60529: 1991, +A1: 2000 IEC 60529: 2001

1% R + 0.2% FS flow accuracy Flow Repeatability: ± 0.2% of full scale Flow Response Time: 0.9 seconds (one time constant) Temperature Accuracy: ± 1.8° F (± 1.0° C) -40 to 250° F (-40 to 121° C); ± 3.6° F (± 2.0° C), 250 to 650° F (121 to 343° C); 60 SFPM minimum. Flow Rates for Insertion Flow Meter: 15 to 60,000 SFPM (0.07 to 280 NMPS) - Air at 70°F (20°C) & 1 ATM Turndown: up to 1000:1; 100:1 typical Gas Pressure (maximum): Insertion: 500 psig (34.5 barg) Inline (1/4” - 6”): NPT 500 psig (34.5 barg); 150# flange 230 psig (16 barg) Check with factory for higher pressure options. Input Power: 24 VDC —– – – (± 10%), 0.7 Amps (standard DC power) 100 to 240VAC~(10%/15%), 50-60Hz, 0.2 Amps (with AC power option) Serial Communication: USB communication port is standard. The free PC-based software tool - FT3 View™ - provides complete configuration, remote process monitoring, and data logging functions.
Download the complete technical features

Industry Oil and gas
